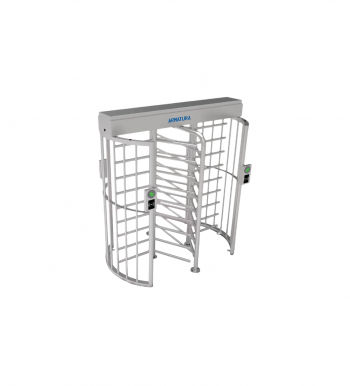

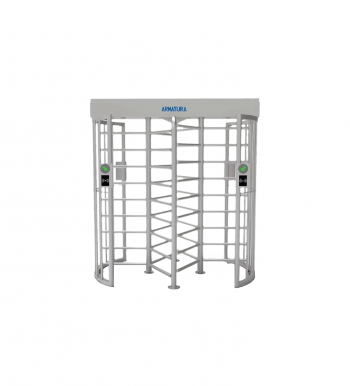

Aegis-2000:Full Height Turnstile
Aegis-2011:Full Height Turnstile with RFID Access Control System
| Model | Aegis-2000 |
| Audio Indicator | Internal Buzzer |
| Visual Indicator |
LED visual indicators integrated into the vertical column
Red cross:passage denied
Green arrow:passage allowed
|
| Lane Type | Dual lane |
| Lane Width | 23.62"(600mm) |
| Barrier Movement Type | Full-height rotating turnstile |
| Movement Speed | Up to 30 people per minute |
| Barrier Material |
SUS304 Stainless Steel
SUS316 Stainless Steel (Optional)
|
| Cabinet Material |
SUS304 Stainless Steel
SUS316 Stainless Steel (Optional)
|
| Lid Material |
SUS304 Stainless Steel
SUS316 Stainless Steel (Optional)
|
| Motherboard Function | System configuration, entry log memory, safety logic |
| Motherboard Communication | Fire alarm port (Relay) * 1, RS485 port * 1 |
| Controller | Standard full height turnstile controller |
| Credential Options |
RFID & Mobile Credentials: EP10C, EP20 Series, VG10CKQ series
(Recommended) or 3rd Party Readers
Biometrics: EP30CF (Fingerprint with RFID and Mobile Credentials),
OmniAC20, FT10CMQ (Face, Palm, RFID and Mobile Credentials)
|
| Flow Rate |
RFID: 30 passengers per minute
QR Code: 30 passengers per minute
Fingerprint: 20 passengers per minute
|
| Accessibility | 23.62"(600mm)standard lane for pedestrians |
| Power Supply | 100-240 VAC, 50 / 60 Hz |
| Power Rating | 40 VA (Standby), 200 VA (Operation) |
| Fire Signal | Input for voltage-free contact |
| Noise Level | Less than 65 dB |
| MTTR | Less than 60 minutes |
| MCBF | 2 million cycles |
| Weight |
Gross Weight: 590.84lb / 268kg
Net Weight: 392.42lb / 178kg
|
| Dimensions (L*W*H) |
81.89"x52.76"x87.80"
(2080 x1340 x2230mm)
|
|
Dimensions with Packaging
(L*W*H)
|
44.49”x 57.09”x 87.95"
(1130x 1450x 2234mm)
|
| Operating Temperature | -18.4°F to 140°F(-28°C to 60°C) |
| Operating Humidity | 20% to 95% RH (non-condensing) |
| Certifications | Compliant with global safety and security standards |
| Ingress Protection Rating | IPX4 |
| Supported Software | Armatura One |
| Safety Features | Power-off, Fail-safe, Emergency escape function |
| Security Features | Anti-tailgating, Anti-intrusion, Auto-close mechanism |
| Product Delivery | Pre-assembled for easy installation |
| Application Environment | Indoor and Outdoor |
| Site Preparation |
Flat and level finished floor
(optional base plate for unfinished floors)
|
| Security Level | High |
| Emergency Mode | Barrier unlocks automatically during emergencies |
| Packing Material | Wooden Box |
