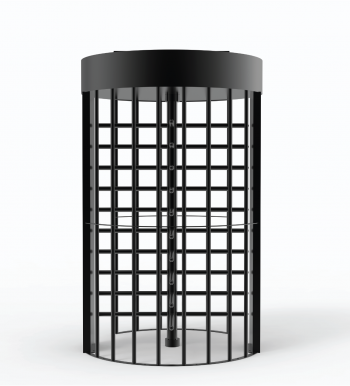

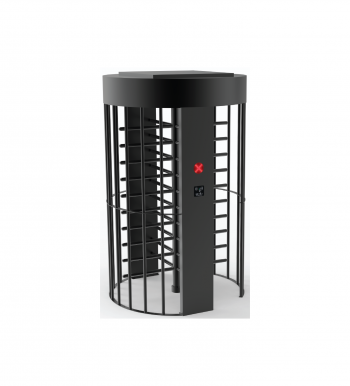

Full-Height Turnstile
Barrier Movement Type: Full-height rotating turnstile for controlled pedestrian access.
MCBF: 2 million cycles, ensuring long-term durability in high-usage environments.
Access Direction: Single or bi-directional operation.
| Model |
Aegis-3000
Aegis-3011 (with RFID)
Aegis-3022 (with Fingerprint and RFID)
|
| Audio Indicator | Internal Buzzer |

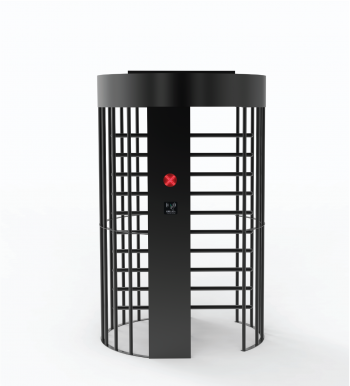

| Visual Indicator |
LED visual indicators integrated into the vertical column
Red cross: passage denied
Green arrow: passage allowed
|
| Lane Type | Single lane |
| Lane Width | 21.65" (550 mm) |
| Barrier Movement Type | Full-height rotating turnstile |
| Movement Speed | Up to 30 people per minute |
| Barrier Material | SUS201 (with black powder coating finishing) |
| Cabinet Material | SUS201 (with black powder coating finishing) |
| Lid Material | SUS201 (with black powder coating finishing) |
| Motherboard Function | System configuration, entry log memory, safety logic |
| Motherboard Communication | Fire alarm port (Relay)*1, RS485 port*1 |
| Controller | Standard full height turnstile controller |
| Credential Options | EP10, EP20 or 3rd-party readers |
| Flow Rate |
RFID: 30 passengers per minute
QR Code: 30 passengers per minute
Fingerprint: 20 passengers per minute
|
| Accessibility | 21.65" (550 mm) standard lane for pedestrians |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Rating | 40 VA (Standby), 200 VA (Operation) |
| Fire Signal | Input for voltage-free contact |
| Noise Level | Less than 60 dB |
| MTTR | Less than 60 minutes |
| MCBF | 2 million cycles |
| Weight |
Gross Weight: 776 lbs (352 kg)
Net Weight: 551 lbs (250 kg)
|
| Dimension (L×W×H) | 59.06" × 59.06" × 94.49" (1500 × 1500 × 2400 mm) |
| Dimensions with Packing |
58.27"×36.61"×84.67" (1480×930×2150mm) (Fence)
61.02"×13.39"×64.96" (1550×340×1650mm) (Top cabinet)
78.35"×35.83"×39.76" (1990×910×1010mm) (Rotating shaft)
|
| Operating Temperature | -18.4°F to 140°F (-28°C to 60°C) |
| Operating Humidity | 20% to 95% RH (non-condensing) |
| Certifications | Compliant with global safety and security standards |
| Ingress Protection Rating | IPX4 |
| Supported Software | Armatura One |
| Safety Features | Power-off, Fail-safe, Emergency escape function |
| Security Features | Anti-tailgating, Anti-intrusion, Auto-close mechanism |
| Product Delivery | Pre-assembled for easy installation |
| Application Environment | Indoor and Outdoor |
| Site Preparation | Flat and level finished floor (optional base plate for unfinished floors) |
| Security Level | High |
| Emergency Mode | Barrier unlocks automatically during emergencies |
| Packing Material | Wooden Box |
