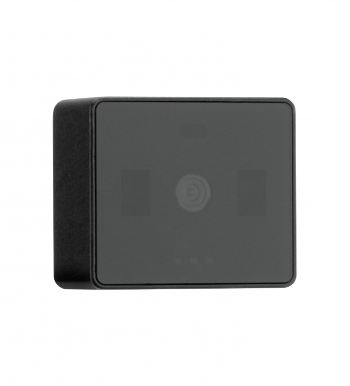

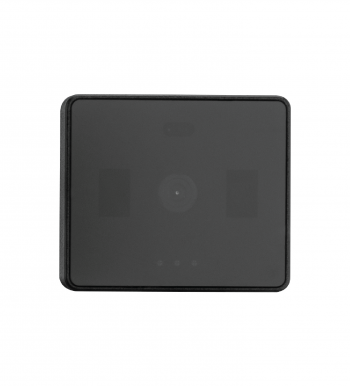

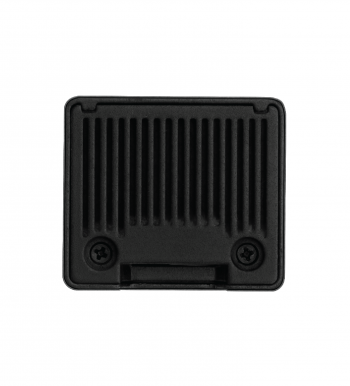

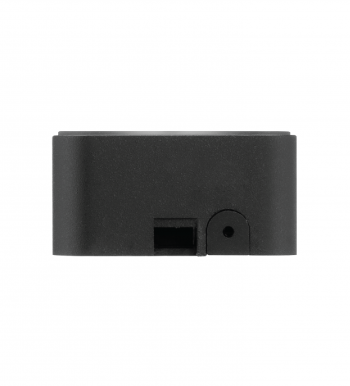

AMT-PIX-20

AMT-PIX-20

•Near-Infrared (NIR) camera with built‑in NIR lighting captures vein patterns beneath the palm at 960×1280 (raw) and 720×1280 (output)

resolution, delivering consistent results regardless of any environment lighting.

•Built‑in algorithms detect the palm, extract the vein template, and block spoofed prints or displays. On‑device processing: liveness

detection <20 ms (IR–visible and IR modes), template extraction <25 ms, 1:1 comparison <30 ms; performance measured at FRR 0.17% @

FAR 0.001% and the template format is compliant with ISO/IEC 19795‑2.

•Intuitive LED indicators (green, red, blue, white) guide users for optimal palm placement and provide instant visual feedback on recognition

status.

•Compatible with the MultiBio SDK, supporting development on major platforms including Windows, Android, and Linux (on request).

•Ultra-compact and lightweight design with a USB 2.0 interface for effortless integration into time attendance systems, access control

devices, identity verification terminals, and other hardware applications.

Processor	800 MHz Dual Core Cortex A53 Processor, 1.5 TOPs NPU
Memory	256MB RAM and 256MB Flash
Camera	1.3MP visible light camera
Interface	USB 2.0
Communication	UVC and HID Protocol
Power Supply	DC 5.0V/2.0A
Power Consumption	< 1.3 W (standby); < 2.5 W (operation)
Visual Indicator	Four-color status LEDs: Red (Failed); Blue ( Standby); Green (Success); White (Processing)
Supported OS	Android 7, 8, 9, 10; Windows 7, 10, 11; Linux (on request)
Operating Temperature	-10°C ~ 55°C / 14°F ~ 131°F
Storage Temperature	-40°C ~ 85°C / -40°F ~ 185°F
Operating Humidity	15% ~ 95% RH (Non-condensing)
Dimension	39(L) x 34(W) x 20.5(H) mm (±1mm) / 1.53" (L) x1.34"(W)x0.81"(H)(±0.04inch)
Certifications	CE, FCC, RoHS, WHQL, ISO/IEC 19795-2
