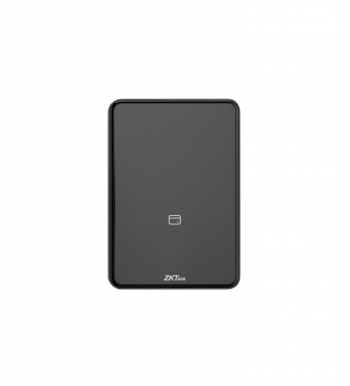

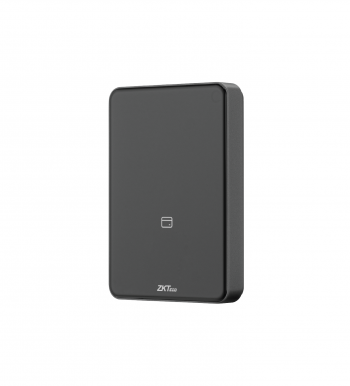

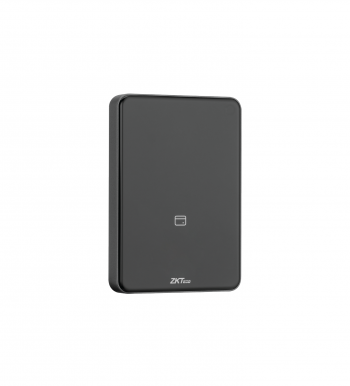

The CR100 series are compact USB desktop readers designed for efficient enrollment and management of contactless credentials across access control, time attendance, visitor management, and card issuance applications.
CR100 and CR100FR support both 13.56 MHz (HF) and 125 kHz (LF) technologies, the readers provide broad compatibility with legacy proximity cards and modern smart cards and NFC tags.
Built on a high-integration RF circuit design, the CR100 delivers reliable card detection with minimal electromagnetic interference, fast read performance (typical detection time ≤500 ms to UID), and read ranges up to 30 mm depending on card type. The USB 2.0 (Type-C) interface enables plug-and-play deployment via standard Custom USB Device and USB keyboard wedge modes on Windows, Android, mac OS, and Linux (on request)—no proprietary drivers required.
| General | |
| Model | CR100 CR100FR |
| Standard Functions | CR100: RFID (Read) CR100FR: Fingerprint Scanner (Read) + RFID (Read) |
| Operating Frequency | 13.56 MHz +125 kHz (Dual-Frequency) |
| Supported Card Type | ID card, IC card, CPU card, MF card |
| Operating System | Windows 7 / 10 / 11 ; Android; mac OS; Linux (on request) |
| Reading Time | ≤500 ms (typical) |
| Reading Distance | 0~10mm (depending on environment and transponder) |
| Communication Interface | USB 2.0 (Type-C) |
| Audio Indicator | Internal buzzer |
| LED Indicators | Red (card reading failed) Green (card reading successful) Blue (breathing blue light, standby) |
| Working Voltage | 5V |
| Operating Temperature | -10℃ - 55℃ |
| Operating Humidity | 10%-90% RH (non-condensing) |
| Dimensions | 112 mm × 78 mm × 21.9 mm |
| Certifications | CE, FCC, Equivalent to RoHS |
| Fingerprint Module | |
| Scanner Type | CR100FR: Optical CR100: / |
| Sensing Area | CR100FR: 15.24 * 20.32 mm CR100: / |
| Image Size | CR100FR: 300*400 pixels CR100: / |
| Image Resolution | CR100FR: 500 dpi CR100: / |
| Grayscale | CR100FR: 256 levels CR100: / |
| Template Size | CR100FR: <2048 bytes CR100: / |
| Data Encryption | CR100FR: AES-256 for image/ template transfer (via SDK) CR100: / |
