DG01-A5W0816- Portable Transparent LED

ALL IN ONE SERIES

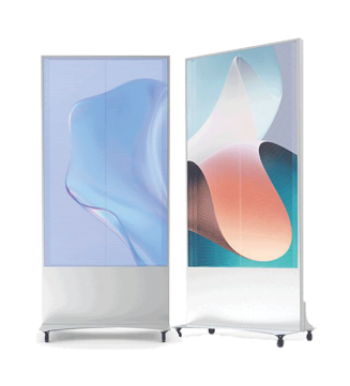

DG01-A5W0816 Hoisting transparent all-in-one machine, light up the screen to enjoy dazzling field of view, unique transparent properties, even if not lit, will not affect the beauty. In the store, different positions of the screen play different content, the combination of static and dynamic, to create a more personalized, more atmosphere of the dazzling experience
DG01-A5F0818 floor-to-ceiling transparent all-in-one machine, ultra-thin box, high flatness to make the picture more clear and bright. No need to install, movable.

  • Light and simple
  • Smart control
  • Integrated design quick installation

Display

Model number

DG01-A5W0816

DG01-A5F0818

LED Light beads SMD2121 SMD1920
Pixel pitch 3.84-6.25 3-6.66
Show Dimensions 800 * 1500 800 * 1500
 Resolution (W*H)  208 * 240  266 * 225
 Brightness  ≥1000cd/㎡  ≥3000cd/㎡
 Average power consumption  248W/㎡  220W/㎡
 Permeability  55% or higher  55% or higher
 Refresh rate  ≥1920Hz  ≥1920Hz
Mounting method Lifting /
Screen weight measurement 16 ± 0.5 KG 30 ± 0.5 KG
Service life 100000 100000





Hanging Transp & Portable Transparent LED Datesheet1.0

0.89 Mb Data Sheet
2024-11-27
