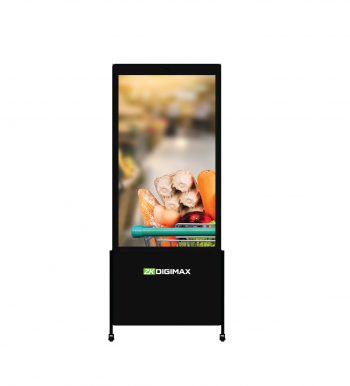

DG03-A1F43/50/55
  • FHD: 1920×1080P
  • RAM/ROM: 2GB/16GB
  • Support Wi-Fi
  • FHD: 1920×1080P
  • RAM/ROM: 2GB/16GB
  • Support Wi-Fi
  • Operating System: Android 11.0

Model

Name

DG03-A1F43

DG03-A1F50

DG03-A1F55

Mainboard



 OS Android 11.0
CPU Cortex-A55,4-core,1.8Ghz
Chipset RK3566
RAM 2GB
ROM 16GB



Display



 Size 43-inch 50-inch 55-inch
Backlight E-LED
Aspect Ratio 16:9
Response Time 8 ms
Frequency 60Hz
Resolution 1920×1080
Visual Angle 178°(H)/178°(V)
Brightness 350cd/m² (typ)

Interface

 RJ45 1
USB 2.0 2

Support

Format

 HDMI IN 1
Video H.264/ RM MPEG2/ MPEG4 H.265/ AVS2
Audio MP3/ WMA/ WAV/ APE/ FLAC/ AAC/ OGG/ M4A/ 3GPP
Image JPG/ BMP/ PNG

Network

 Wi-Fi 2.4G
LAN RJ45

Speaker

 Power 5W×2

Power

 Power Input 100~240V, 50/60Hz
Max Consumption ≤36W ≤47W ≤57W
Standby Consumption ≤1W

General
Environment

 Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Operating Humidity 10% to 90% RH
Storage Humidity 10% to 90% RH

Physical
Parameters

 Product Dimensions 1755×598.×30mm
(L×H×W)		 1811×672×30mm
(L×H×W)		 1869×748.×30mm
(L×H×W)
Package Dimensions 1835×740×167mm
(L×H×W)		 1891×799×170mm
(L×H×W)		 1950×890×177mm
(L×H×W)
Net Weight 32.8kg 40.1kg 45.6kg
Gross Weight 38.3kg 46.7kg 52.9kg
