DGLED-Cube LED
  • Easy to install
  • Low power consumption
  • 360 degree full view playback

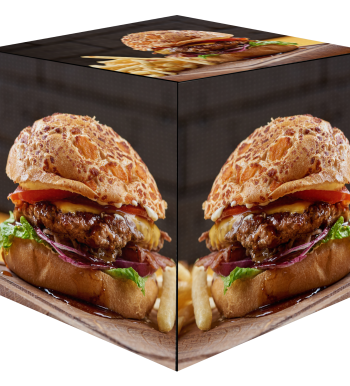

The LED cube screen is a product that our company excels in mass production. It utilizes high-end cutting-edge technology to achieve seamless splicing between each display surface. During the design process, it is integrated with the actual installation scene to create a more innovative LED display solution. In terms of products, the unique shape of the LED cube screens captivates users and breaks away from traditional monotony, offering a fresh visual experience.

  •  Easy to install
  • Low power consumption
  • 360 degree full view playback

Display

Model

DG01-A7P25A32

DG01-A7P25C32

DG01-A7P25A64

DG01-A7P25C64

Pixel pitch The 2.5 mm The 2.5 mm The 2.5 mm The 2.5 mm
Screen size (mm) 320 * 320 * 320 320 * 320 * 320 640 * 640 * 640 640 * 640 * 640
Resolution (W*H) 128*128*4 sides 128*128*4 sides 256*256*4 sides 256*256*4 sides
Brightness ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡
Power consumption(average) 110W 115W 370W 460W
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Installation Side hanging Lifting Side hanging Lifting
Weight 11KG 13KG 28KG 30KG
lifespan (hrs) 100000 100000 100000 100000

DGLED-Cube screen Datasheet

0.77 Mb Data Sheet
2024-11-27
