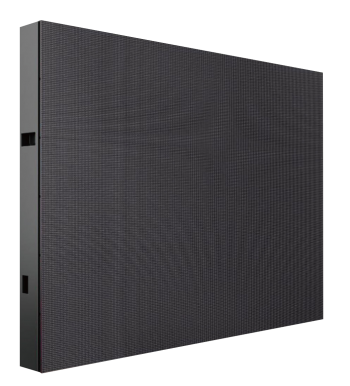

DGLED-Outdoor

Full-Color LED Display

The outdoor LED display possesses the characteristics of high brightness, durability, waterproofness, energy efficiency, and environmental friendliness. It plays a crucial role in the domains of outdoor media, advertising, cultural transmission, and entertainment while contributing significantly to urban construction and sports events.

  •  High-Brightness
  •  3840HZ
  • Wide Viewing Angle
  • IP65 Protection
  • -10~60 ℃ Operating Temperature
  • Various Pitches

Model

DG01 -A2P25

DG01-A2P40

DG01-A2P50

DG01-A2P80

DG01 -A2P100

Cabinet Parameters
Module quantity 3*6
Dimensions
(W × H × D)		  960*960*100mm  960*960*100mm  960*960*100mm  960*960*100mm  960*960*100mm
Resolution  384*384  240*240  192*192  120*120  96*96
Size (m²)  0.9216  0.9216  0.9216  0.9216  0.9216
Weight  18KG  18KG  18KG  18KG  18KG
Cabinet material  Die-cast aluminum  Die-cast aluminum  Die-cast aluminum  Die-cast aluminum  Die-cast aluminum
Maintenance  Back maintenance  Back maintenance  Back maintenance  Back maintenance  Back maintenance
Ingress Protection  Front IP65  Front IP65  Front IP65  Front IP65  Front IP65

Physical parameters


Pixel pitch 2.5mm 4.0mm 5.0mm 8.0mm 10.0mm
Module size L320 * H160 *T17.2mm L320 * H160 *T17.2mm L320 * H160 *T17.2mm L320 * H160 *T17.2mm L320 * H160 *T17.2mm
Module resolution 128*64dots 80*40dots 64*32dots 40*20dots 32*16dots
Module weight 380±10g 410±10g 410±10g 420±10g 420±10g
Pixels density 160000Dot/m² 62500Dot/m² 40000Dot/m² 15625Dot/m² 10000Dot/m²
Scan mode 1/16 scan 1/10 scan 1/8 scan 1/5 scan 2s
Port type HUB75 HUB75 HUB75 HUB75 HUB75

Optical parameters


Brightness ≥5000cd/m² ≥5000cd/m² ≥5000cd/m² ≥5000cd/m² ≥5000cd/m²
Color temperature ≥10000K ≥10000K ≥10000K ≥10000K ≥10000K
Best viewing angle 120°(W) 120°(H)Deg. 120°(W) 120°(H)Deg. 120°(W) 120°(H)Deg. 120°(W) 120°(H)Deg. 120°(W) 120°(H)Deg.
Module consumption ≤30W ≤40W ≤40W ≤30W ≤27W
Frame frequency ≥60Hz ≥60Hz ≥60Hz ≥60Hz ≥60Hz
Refresh frequency 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz
Lifespan 100000Hours 100000Hours 100000Hours 100000Hours 100000Hours
Working temperature -10~60°C -10~60°C -10~60°C -10~60°C -10~60°C
Working humidity 10%~70%RH 10%~70%RH 10%~70%RH 10%~70%RH 10%~70%RH
