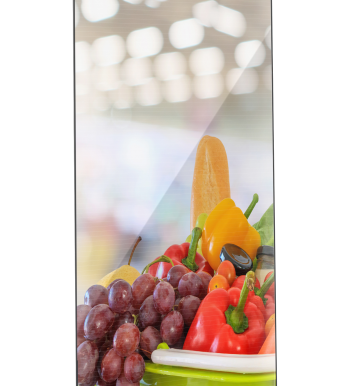

LED poster screen is a digital billboard that client can upload their videos and digital content in the simplest way to showcase their core products. Fashionable and simple. It is portable and easy to maintain, Users can place it anywhere.
Display |
||
Model |
DG01-A6P18 |
DG01-A6P25 |
| Pixel Pitch | 1.8mm | 2.5mm |
| Module Size | 320 x 160mm | 320 x 160mm |
| Module Resolution | 170 x 85dots | 128 x 64dot |
| LED Configuration | SMD 3 in 1 | SMD 3 in1 |
| Module Structure | SMD1515 | SMD2121 |
| Display Dimension | 1920 x 640mm | 1920 x 640mm |
| Cabinet Size | 2008*652*450mm | 2008*652*450mm |
| Frame Material | Steel | Steel |
| Frame Color | Black (default) | Black (default) |
| Weight | 45kg / unit (approx..) | 45kg / unit (approx..) |
| Brightness | ≥800nit | ≥800nit |
| Viewing Angle | 160° H; 140° V | 160° H; 140° V |
| Refresh Rate | 3840Hz | 3840Hz |
| Contrast Ratio | 3000:1 | 3000:1 |
| Operation Power | AC110 / 240V, 50-60Hz | AC110 / 240V, 50-60Hz |
| Max Power | 800W / ㎡ | 600W / ㎡ |
| Average Power | 240W / ㎡ | 180W / ㎡ |
| Connection Type | USB Disk / Wi-Fi | USB Disk / Wi-Fi |
| Supported Media Files | Video / Photo | Video / Photo |
| Operating Temperature | -10°C-+40°C | -10°C-+40°C |
| Storage Temperature | -20C-+55C | -20C-+55C |
| Operating Humidity | 10-65% RH. No Condensation | 10-65% RH. No Condensation |
| Storage Humidity | 10-90% RH. No Condensation | 10-90% RH. No Condensation |
| Operating Lifetime | 100.000 Hours | 100.000 Hours |
