DL30Z

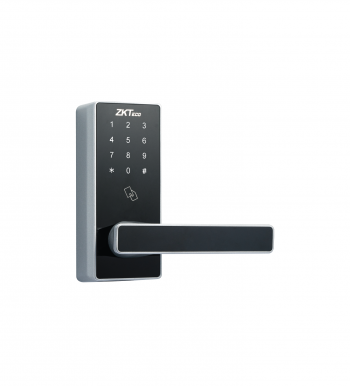

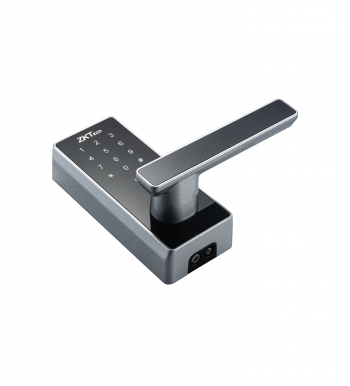

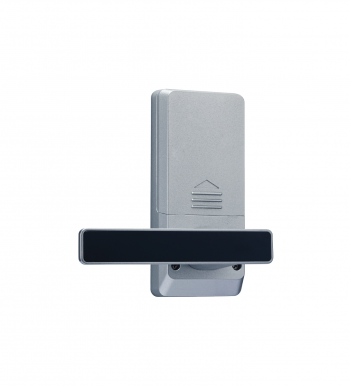

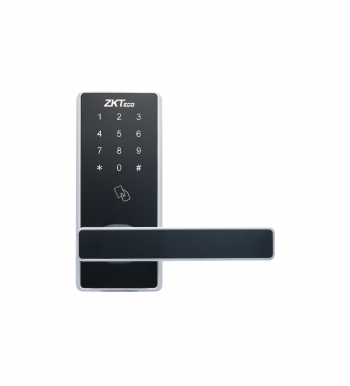

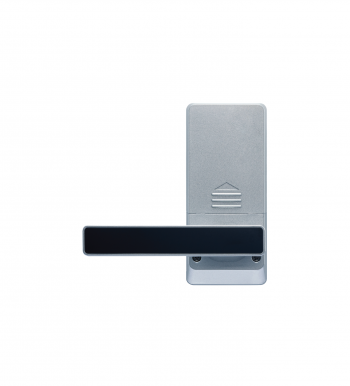

DL30Z is a digital keypad smart lock with Zigbee communication. With the additional Zigbee Gateway, you can easily remotely unlock the door lock, check the log history, share the temporary or dynamic passcode, modify the lock’s features via ZSmart App, which is a new mobile application for the smart home system.With its powerful and smart core, you can receive the real-time notifications of low battery, illegal verification attempts, hijack alarm of family members, offline status, and so on. Besides, you can customize conditions to trigger some messages or actions like when a family member goes home. DL30Z is suitable for private houses, apartments and short-term rental, and greatly brings more security and convenience to your life.

Identification Mode Smart Phone, Passcode and Card
Passcode Capacity 100
User Capacity 100
Card Capacity 100
Card Reader Mifare Card & NFC Supported
Audio Prompt English, Spanish, Portuguese
Remote Access Zigbee Gateway required
Backup Power Interface 9V Battery Supported
Battery Life Up to 1.5 years (about 10,000 access)
Door Thickness 30 - 54 mm (standard)
Back Set Adjustable 60 or 70 mm (only for single latch)
Dimensions Front – 69 * 155 * 35 (mm) , Back – 69 * 155 * 26 (mm)
Operating Temperature -20°C to 55°C

Operating Humidity

10% ~ 90% RH (non-condensing)

Material

Zinc Alloy (Front) + ABS (Back)

DL30Z Leaflet V1_20200629

6.36 Mb Data Sheet
2020-07-01
