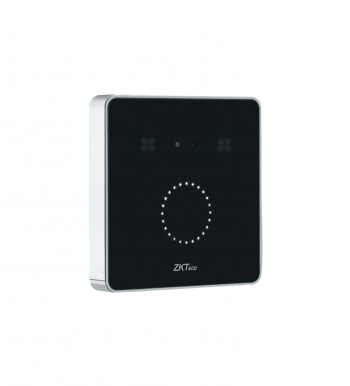

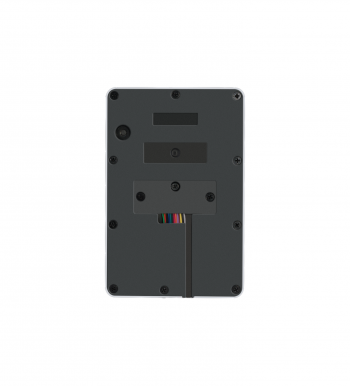

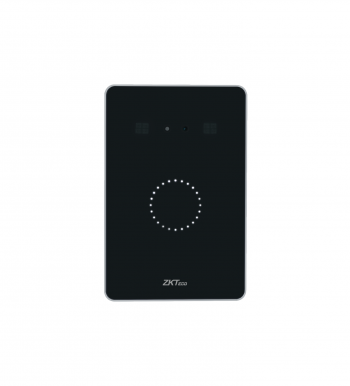

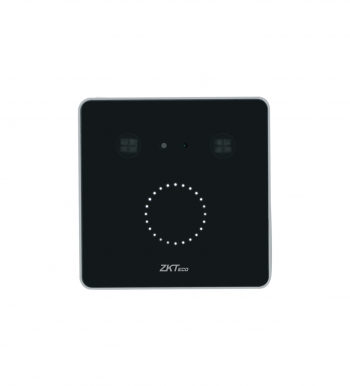

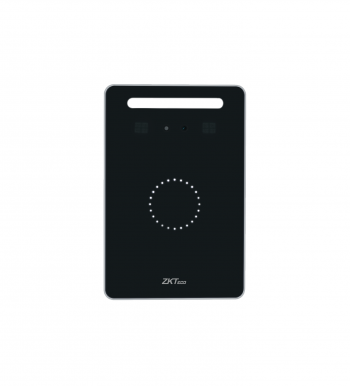

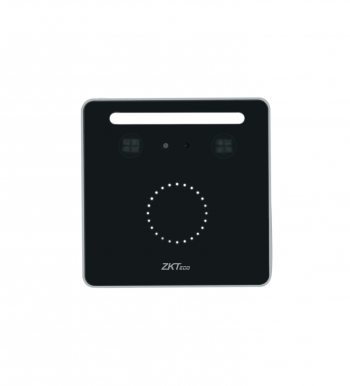

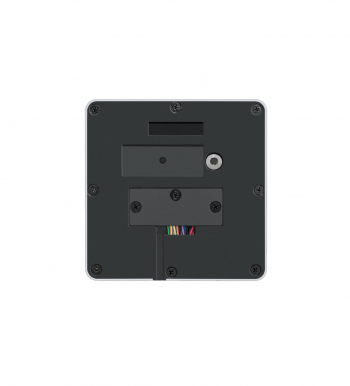

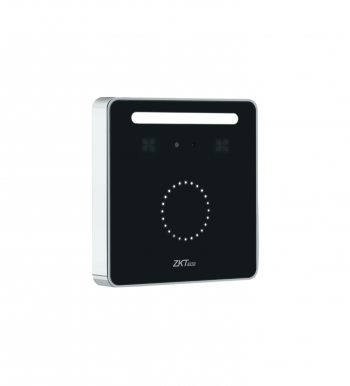

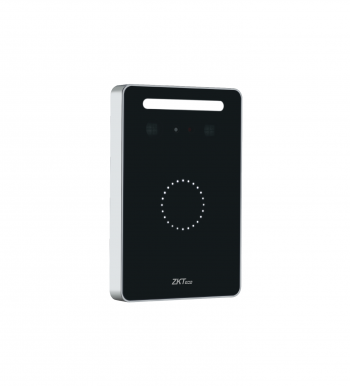

ZKTeco’s KF1100 Pro & KF1200 Pro is a sophisticated visible light facial authentication and RFID reader. This series can operate either as a biometric readers or as standalone access control devices, offering you the flexibility to choose the mode that best suits your needs.
Designed to integrate seamlessly with the inBio Pro Plus controllers, the KF1100 Pro & KF1200 Pro can capture and convert face images into face templates as small as 512 bytes. The face templates will then be transmitted to the inBio Pro Plus controllers via RS-485 for authentication. The KF1100 Pro & KF1200 Pro are equipped with TCP/IP port, allows for fast data synchronization with the controllers, raising the bar for stable and precise facial authentication capabilities.
Also, KF1100 Pro & 1200 Pro showcase its versatility when deployed as a visible light facial authentication standalone access control device with a DM10 (door lock extension panel). KF1100 Pro & 1200 Pro is compatible with the ZKBio CVSecurity through ZKTeco A&C PUSH protocol.
| Model | KF1100 Pro KF1200 Pro |
| Display | / |
| Camera | Dual Camera @ 2MP |
| Operation System | Linux OS |
| Hardware | CPU: 1.2GHz Dual Core RAM: 256MB; ROM: 512MB |
| Authentication Method | Face / Card |
| Fingerprint Template Capacity | / |
| Face Template Capacity | Face Reader Mode: 3,000 Store in InBio Pro Plus (Default) A&C Standalone Mode: 1,500 (1:N) (with DM10) (Optional) |
| Palm Template Capacity | / |
| Card Capacity | Face Reader Mode: 100,000 Store in InBio Pro Plus (Default) A&C Standalone Mode: 30,000 (1:N) (with DM10) (Optional) |
| User Capacity | Face Reader Mode: 100,000 Store in InBio Pro Plus (Default) A&C Standalone Mode: 30,000 (1:N) (with DM10) (Optional) |
| Transaction Capacity | Face Reader Mode: 500,000 Store in InBio Pro Plus (Default) A&C Standalone Mode: 100,000 (1:N) (with DM10) (Optional) |
| Biometric Authentication Speed | less than 0.3 sec (Facial Recognition) |
| Touchless Biometric Recognition Distance | 30cm to 50cm (Facial Recognition) |
| Touchless Biometric Operating Lighting Environment | ≤ 2,000 lux @ Face |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% |
| Biometric Algorithm | ZKLiveface 3.5 / 4 |
| Card Type | ID Card @ 125 kHz (Standard) IC Card @ 13.56 MHz (Optional) |
| Communication | Face Reader Mode: ZKTeco RS-485*1 A&C Standalone Mode / Face Template Mode: TCP/IP * 1 Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz (Optional) |
| Mobile Communication | / |
| Standard Functions | Face Reader Mode (with InBio Pro Plus) A&C Standalone Mode (with DM10) Face Template Mode (Default) |
| Optional Functions | IC Card@13.56 MHz (Optional) Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz (Optional) |
| Access Control Interface | A&C Standalone Mode (with DM10) |
| Power Supply | DC 12V 3A |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | KF1100 Pro: 91mm * 91mm * 13.8mm (L * W * H) KF1200 Pro: 121mm * 80mm * 13.8mm (L * W * H) |
| Gross Weight | 0.36Kg |
| Net Weight | 0.27Kg |
| Supported Software | ZKBio CVSecurity |
| Installation | KF1100 Pro: Wall-mount(Compatible with Asian Gang Box) KF1200 Pro: Wall-mount(Compatible with Single Gang Box) |
| Housing Material | Aluminium Alloy |
| Ingress Protection Rating | / |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
| Factory ID | KF1100 Pro: AC01-VL06H-P17 KF1200 Pro: AC01-VL07H-P17 |
