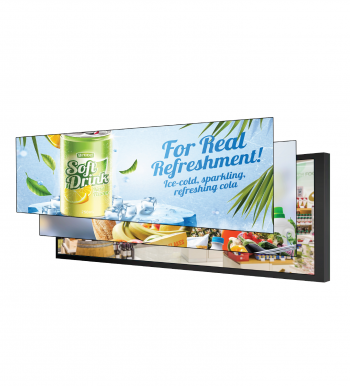

LCD shelf display is a commercial display products with an ultra-wide LCD screen.In order to install on different sizes of shelf, it has various sizes of displays. It can be widely used to show the advertisements at retail industry, which aims to help shops improve the experience of shopping and shops turnover.
Display |
||||
Model |
DG02-A1W23 |
DG02-A1W24 |
DG02-A1W28 |
DG02-A1W37 |
| LCD Tech. | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD |
| Screen Size | 23.1inch | 24inch | 28inch | 37inch |
| Resolution | 1920*158 | 1920*360 | 1920*360 | 1920*540 |
| Brightness | 500cd/m² | 300cd/m² | 500cd/m² | 500cd/m² |
| BLU | LED side entry | LED side entry | LED side entry | LED side entry |
| Contrast Ratio | 3000:1 | 1200:1 | 1200:1 | 1000:1 |
| Viewing Angle(H/V) | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Backlight Life | 30000h | 30000h | 30000h | 30000h |
CPU |
||||
| CPU | T972 | A40 | A40 | A40 |
| OS | Android 9.0 | Android 9.0 | Android 9.0 | Android 9.0 |
Memory |
||||
| RAM | 2GB DDR3 | 1GB DDR3 | 1GB DDR3 | 1GB DDR3 |
| ROM | 8GB(32G/64G Optional) | 8GB(32G/64G Optional) | 8GB(32G/64G Optional) | 8GB(32G/64G Optional) |
Internal Player |
||||
| I/O Interface | USB*2,DC*1,TF*1,HDMI*1 | USB*2,DC*1,TF*1,HDMI*1 | USB*2,DC*1,TF*1,HDMI*1 | USB*2,DC*1,TF*1,HDMI*1 |
Power |
||||
| Power supply | DC 12V/3A | DC 12V/5A | DC 12V/5A | AC100~250V |
| Power consumption | 20W | 28W | 35W | 40W |
Environment |
||||
| Operation temperature | 0 ~ 50 °C | 0 ~ 50 °C | 0 ~ 50 °C | 0 ~ 50 °C |
| Operation humidity | ≤80%RH | ≤80%RH | ≤80%RH | ≤80%RH |
Physical |
||||
| Body Dimension | 602*65*30mm | 616.1*138*54mm | 732*165*49.8 | 920*282*45.8mm |
| Set Weight | 1.8kg | 3.0kg | 3.2kg | 7.0kg |
