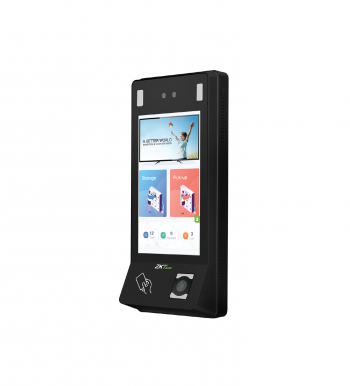

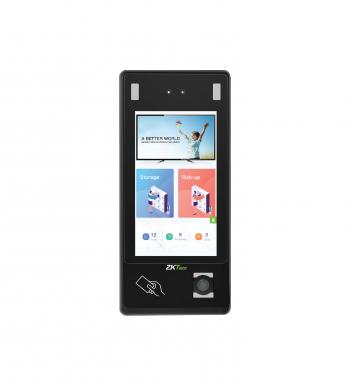

ZKTeco developed a networked electronic delivery locker module, LockerPad-G4 Pro, offering a reliable, secure, and convenient locker system. LockerPad-G4 Pro integrates with ZKBio CVSecurity and adopts multiple authentication methods, including facial recognition, and multi-tech card verification, to unlock the locker without a key, ensuring storage safety and enhancing convenience.
The LockerPad-G4 Pro embedded into a 7 inches colour touch screen display, creating a easy-to-manage self-service terminal for parcel and personal belongings storage. In addition, LockerPad-G4 Pro supports digital advertisement (image & video), which can drive foot traffic and sales effectively.
ZKTeco also provides an LCDP tool which is used for 3rd party applications integration. It includes simplified bottom hardware interface, algorithm interface and some upper business logic and configuration, which can make development more easier and more efficient.
| Model | LockerPad-G4 Pro |
| Capacity | |
|
Cabinet Capacity |
96 ( *support connection with up to 8pcs Lock Control Board through RS485 connection) |
|
Face Capacity |
50,000 (1 : N) |
| Card Capacity | 50,000 |
| Transaction Capacity | |
| CPU | 64bit Octa-core Customized Computer Vision 1.8GHz CPU |
| Memory | 2G RAM / 16G ROM |
| Operating System | Android 9.0 |
| Algorithms | ZKFace 5.6.2 |
| Communication | TCP/IP, USB Host, RS232, RS485, Wiegand Input, Wiegand Output, Wi-Fi, WLAN: 2.4GHz, 4G(Optional) |
| Software | ZKBio CVSecurity |
| Function Parameters | |
| Standard Firmware Functions | Multiple people and one cabinet setting, Temporary takeout settings |
| Facial Recognition | Facial Recognition Speed: Within 1s Facial Recognition Distance: 20cm to 50 cm |
| Card Type | ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional) |
| Operating Environment | |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -15°C to 55°C (5°F to 131°F) |
| Storage Humidity | <90% |
| Interface Parameters | |
| Peripheral Interface | USB*1, Network Port*1, RS485*1, TXD*2, RXD*2, INWD*1, WD*1, AUX*1, SEN*1, BUT*1, NO*1, NC*1, COM*1, AL*1 |
| Other Parameters | |
| Screen | 7-inch LCD Touch Screen (720*1280 pixels) |
| Camera | 2MP Binocular Camera |
| Power Supply | DC 12V 3A |
| Dimensions | 264 mm * 120 mm * 51 mm (9.69 in * 4.72 in * 2 in) |
| Certifications | CE, FCC, ISO9001,ISO14001,ISO20000 |
