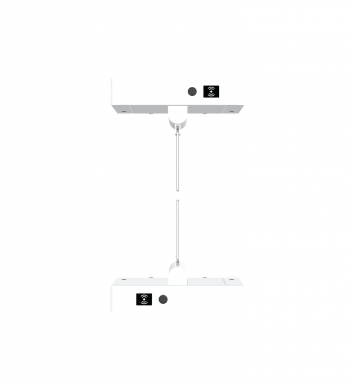

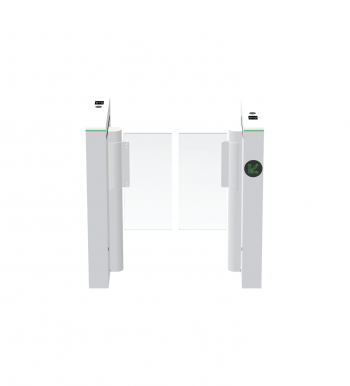

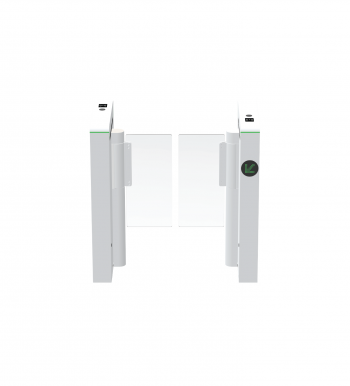

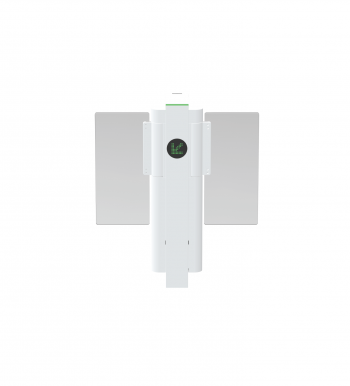

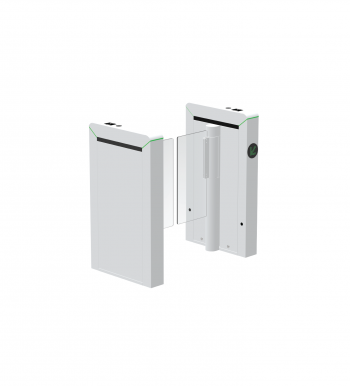

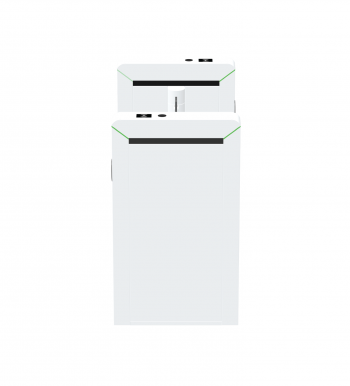

Mars-S100 swing barrier turnstile series from ZKTeco is constructed from durable cold-rolled steel SPCC (GB700) with a powder coating, offering a contemporary design. The turnstile provides single lane or dual lane, and the lane which can be extended up to 900mm for for very high-traffic areas such as bus terminals, government institutions and stadiums.
Mars-S100 Series has installed four pairs of IR sensors for accurate people counting and to avoid collisions with the barrier. The barriers can be locked in a closed position, and an integrated clutch mechanism engages if the barrier is forced, protecting the turnstile from damage.
Additionally, this compact speed gate can integrate with access control system. Upon a valid verification of user's credentials (Fingerprint / Face / Palm / RFID Card / QR code), the barriers automatically swing to the open position, allowing passage. Essential safety functions include automatic barrier opening in the event of power loss or a fire alarm signal activation, ensuring unimpeded egress in emergencies.
| Model Name | Mars-S100 Mars-S120 |
| Visual Indicator | Steady Green = Normal Use Steady Red= Door Closed |
| Audio Indicator | Internal buzzer |
| Lane Type | Mars-S100: Single lane Mars-S120: Dual Lane(Consists of 2 single-core swing barrier turnstile and 1dual-core swing barrier turnstile) |
| Lane Width | 660mm (optional: 900mm) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | 0.8s per movement (open/close timing) |
| Movement Accuracy | ± 2 Degrees |
| Clutch | Mechanical clutch for anti-panic/anti-collision |
| Lid Material | Cold-rolled steel SPCC (GB700)(optional: SUS304 stainless steel) |
| Lid Options Authentication Methods | Streamlined under mount options: Fingerprint / RFID / Palm Recognition / QR Code Surface mount options: Facial Recognition |
| Chassis Material | Cold-rolled steel SPCC (GB700) (optional: SUS304 stainless steel)(T=1.2mm) |
| Chassis Color | White (standard)/silver-gray (optional) |
| Barrier Material | Acrylic, 295x630mm (standard) / Acrylic, 425x630mm (optional) |
| IR Sensors | 4 Pairs (standard) (high&low position) |
| Motherboard Function | System configuration, access mode configuration, anti-pinch configuration, etc. |
| Motherboard Communication | Fire alarm port (relay)*1, RS485 port *1 |
| Controller | C3-200 & InBio260 Pro (recommended) other depends on dimensions fitting in (optional) |
| Credential Options | Under mount RFlD reader: (support model: ProlD Series, KR Series) Under mount fingerprint reader: FR1200 / FR1500 Facial Recognition: Proface X, G4 Pro Palm: Omni AC30 |
| Flow Rate | Mars-S100: QR Code / RFlD: 30 passengers per minute; Fingerprint / Palm: 20 passengers per minute; Face: 15 passengers per minute Mars-S120: QR Code / RFlD: 30 passengers per minute; Fingerprint / Palm: 20 passengers per minute; Face: 15 passengers per minute |
| Barrier Width | 660mm (standard for single pedestrian access) 900mm (optional for trolley or pedestrian with luggage access) |
| Power Supply | 110V / 220V AC@50 to 60 Hz, DC 24V |
| Power Rating | 22VA (Standby) 50VA (Operation) |
| Fire Signal | Input for voltage free contact |
| MTTR | Less than 60 minutes |
| Noise Level | Less than 60dB |
| MCBF | 5 million |
| Gross Weight | Mars-S100: 32kg (±5kg) (2boxes) Mars-S120: 40kg (±5kg) (1boxes) |
| Net Weight | Mars-S100: 25kg (±5kg) (2boxes) Mars-S120: 30kg (±5kg) (1boxes) |
| Dimension (L*W*H) | 600 * 120 * 1040 mm |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0% to 85% RH (Non-condensing) |
| Certifications | CE, FCC, ISO9001 |
| Supported Software | ZKBio CVAccess/ZKBio CVSecurity (depends on equipped access controller) |
| Safety Features | Voltage free contact input for fire alarm fail state automatic barrier open during power off |
| Security Features | Infrared Anti-Clamping, Mechanical Anti-Clamping, Power-Off Fail-Safe, Emergency Escape Function |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor |
| Site Preparation | Flat&level fnished floor (base plate in options for unfinished floor) |
| Dimensions with Packing ( L*W*H ) | Mars-S100: 762 * 362 * 1215 mm (2 boxes) Mars-S120: 762 * 362 * 1215 mm (1 box) |
| Security Level | Low |
| Emergency Mode | Support (barrier open automatically) |
| Packing Material | Wooden (standard) |
