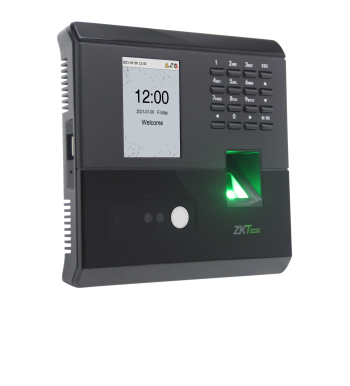

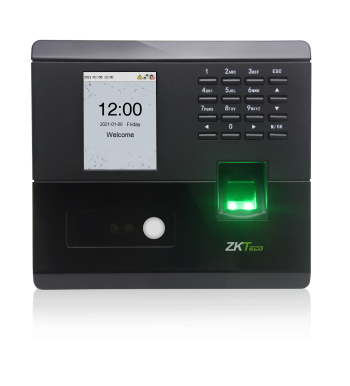

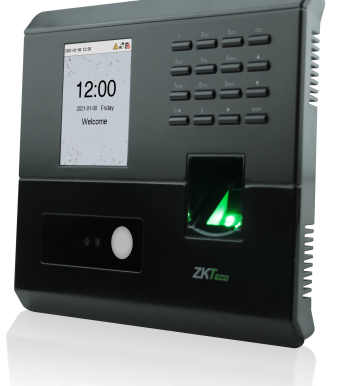

MB10

MB10 is an innovative biometric fingerprint and face terminal for Time Attendance application, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The multibiometric device comes with  a variety of verification methods, and can also be equipped with parameters for the East Africa region. It is an excellent machine for small and medium enterprises.

Fingerprint Capacity 500
Face Capacity 200(expand 300)
ID Card Capacity 1,000
User 1,000
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication TCP/IP,USB-Host
Standard Functions Short Message,Scheduled-bell,Self-Service Query, Automatic Status Switch,Backup Battery ,T9 Input ,9 digit user ID
Optional Functions Workcode , Build in WIFI
Power Supply DC 12V 1.5A
Operating Temp 0 °C - 45 °C
Operating Humidity 20%-80%

mb10 data sheet

0.62 Mb Data Sheet
2023-10-01

2.8" general quick start guide

1.3 Mb Quick Start Guide
2023-10-01

2.8" general user manual

5.28 Mb User Manual
2023-10-01
