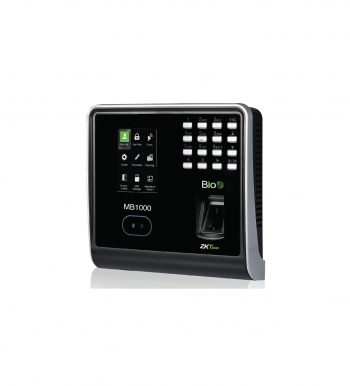

MB1000 is the first ever Time & Attendance and Access Control Terminal
to be associated with BioID fingerprint reader, face recognition and RFID
card functions. With the new BioID fingerprint reader, the operation remain
stable under strong light source and high preciseness of verification of wet
and rough fingers. With latest facial algorithm and the innovation features,
MB1000 is bringing you the whole new experience
| Face Capacity | 2,000 |
| Fingerprint Capacity | 3,000 |
| ID Card Capacity | 3,000 |
| Record Capacity | 100,000 |
| Display | 2.8-inch TFT Screen |
| Communication | RS232/485, TCP/IP, USB -Host |
| Standard Functions | Work Code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch ,Photo ID, T9 Input, Camera, 9 digit user ID, Built-in Battery, Multiple Verify Mode, External Bell. |
| Access Control Interface for | Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Signa | Output |
| Optional Functions | ID/MF, WDMS |
| Power Supply | DC 12V 3A |
| Operating Temp | 0 °C- 45 °C |
| Operating Humidity | 20%-80% |
| Dimension | 173.0×159.0×36.1mm (Length×Width×Thickness) |
| Net Weight | 490 g |
