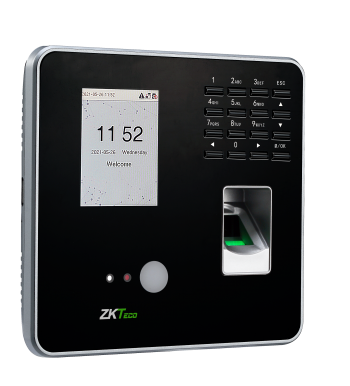

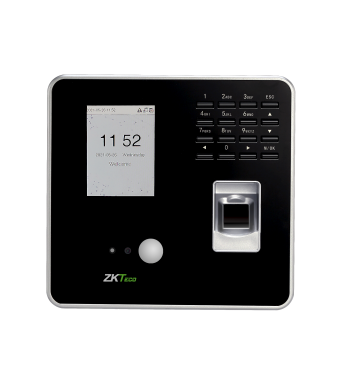

MB20-VL is a touchless multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology.
With the latest algorithm and Visible Light facial recognition technologies, the device can recognize a target in the distance from 30cm to 50cm. It will automatically operate when it detects a human face in the detection distance to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminals.
With the applied Deep Learning algorithm, the pose angle tolerance and anti-spoofing ability against the dynamic enviroment and various spoofing attacks have been greatly enhanced.
Together with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules, MB20-VL must be the best fit in various working environments satisfying different customer’s needs.
Innovative ZKTeco Visible Light. With the latest Visible Light facial recognition algorithm and technology, the device can automatically recognize a target from a distance of 30cm to 50cm, offering better recognition quality in terms of speed and accuracy compared to previous infrared facial recognition terminals.
| Display | 2.8-inch TFT Screen |
| Face Capacity | 100 (Optional:800) |
| Fingerprint Capacity | 500 (Optional:800) |
| Card Capacity | 500 (Optional),Max.800 |
| Transactions | 50,000 (Optional:150,000) |
| Communication | TCP/IP, USB Host, WiFi (Optional) |
| Standard Functions |
ADMS, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digt User ID, Multiple Verification Methods, Bell Scheduling, SSR |
|
Hardware |
1GHz Dual-Core CPU, 256MB RAM/256MB Flash, 1MP Binocular Camera |
|
Operation System |
Linux |
|
Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button |
|
Optional Functions |
125kHz ID Card (EM) / 13.56MHz IC Card, WiFi |
| Biometrics Algorithm | ZKLiveFace V3.5 / ZKFinger V10.0 |
| Facial Recognition Speed | ≤1s |
| Power Supply | 5V 2A |
| Working Humidity | 20% to 80% |
| Working Temperature | 0°C to 45°C |
| Dimensions(W*H*D) | 161.93*152.93*31.50 (mm) |
| Supported Software | ZKBio Access IVS (T&A) |
