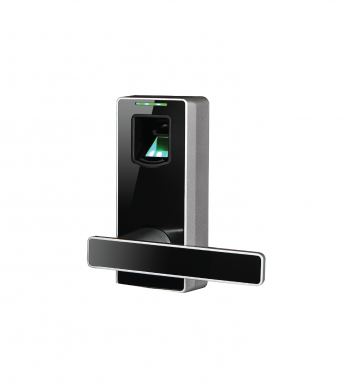

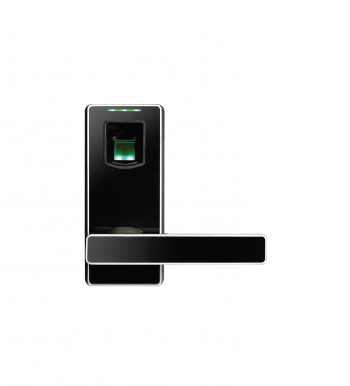

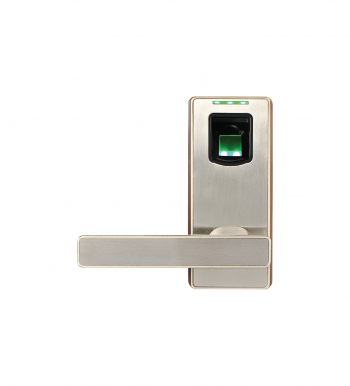

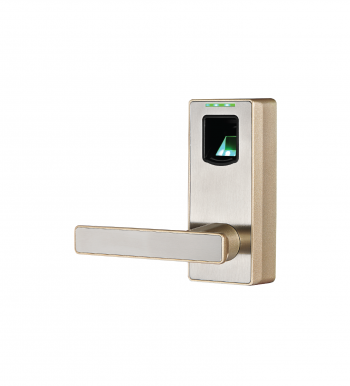

ML10D is a smart lock with embedded fingerprint recognition technology. It is DIY design, which can replace knob lock easily and quickly. You even can do it by yourself.
• With the new generation fingerprint recognition algorithm
• Rugged, sleek and compact design
• German standard mortise with one latch and one deadbolt turnhandle upward to lock the deadbolt for
more security
• Independent clutch motor design under patent protection
• Idle handle design to prevent from forcible entry
• Registration data are stored even if there is power loss
• Handle, lock body and strike is reversible design for all door open direction
• Infrared sensor–Touch to open
• Emergency key override (concealed)
• LED indicator and inbuilt buzzer
• External terminals to draw back-up power from a 9V battery
• Low battery warning
• Normal Open mode
• Easy to program and easy to use
• Easy to install–no wiring required
• 3 user groups – Admin, Normal User and Temporary User
• Backset is 62mm
| Material | Zinc Alloy |
| User Capacity | Admin – 10, Normal User – 60, Temporary Us |
| Operation Temperature | 0℃~45℃ |
| Power Supply | 4 x AA Alkaline Battery |
| Backup Unlock | Mechanical Key & 9V Battery |
| Door Thickness |
39-46 mm (standard) |
| 47-54 mm (standard) | |
| 30-38 mm (optional) | |
| 55-60 mm (optional) | |
| Dimensions | Front – 69(W)×155(L)×35(D) mm |
| Back – 69(W)×155(L)×25(D) mm |
