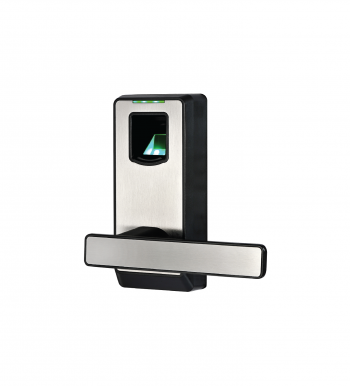

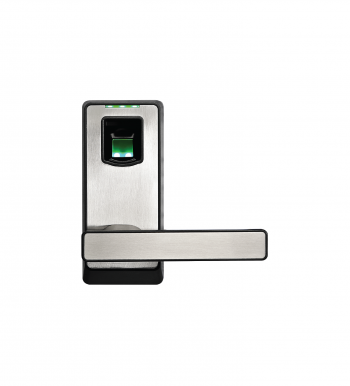

PL10D

PL10D is a smart lock with embedded fingerprint recognition technology. Features: German standard mortise with one latch and one deadbolt; 3 user groups – Admin, Normal User and Temporary User; registration data are stored even if there is power loss; handle, latch and strike is reversible design for all door open direction; infrared sensor – touch to open; emergency key override (concealed); LED indicator and inbuilt buzzer; external terminals to draw back-up power from a 9V battery; low battery warning; backset is 62 mm.

PL10D is a smart lock with embedded fingerprint recognition technology. It is DIY design, which can replace knob lock easily and quickly.

Features

  • With the new generation fingerprint recognition algorithm
  • Rugged, sleek and compact design
  • German standard mortise with one latch and one deadbolt – turn handle upward to lock the deadbolt for more security
  • Independent clutch motor design under patent protection
  • Idle handle design to prevent from forcible entry
  • Registration data are stored even if there is power loss
  • Handle, latch and strike is reversible design for all door open direction
  • Infrared sensor – Touch to open
  • Emergency key override (concealed)
  • LED indicator and inbuilt buzzer
  • External terminals to draw back-up power from a 9V battery
  • Low battery warning
  • Normal Open mode
  • Easy to program and easy to use
  • Easy to install – no wiring required
  • 3 user groups – Admin, Normal User and Temporary User
  • Backset is 62 mm

Material

Rugged ABS

User Capacity

Normal User - 60

Temporary User - 20

Operating Temperature

-20°C - 55°C

Power Supply

4×AA Alkaline Battery

Backup Unlocking Way

Mechanical Key & 9V Battery

Door Thickness

30-38 mm (optional)

39-46 mm (standard)

47-54 mm (standard)

55-60 mm (optional)

Dimensions

Front - 69(W)×155(L)×35(D) mm

Back - 69(W)×155(L)×25(D) mm

PL10D

0.22 Mb Data Sheet
2022-04-15
Download
