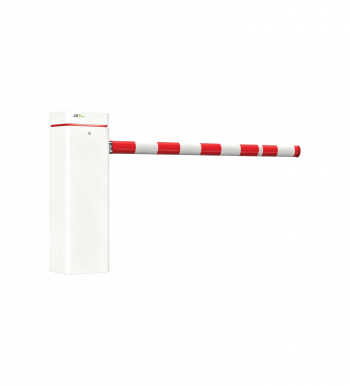

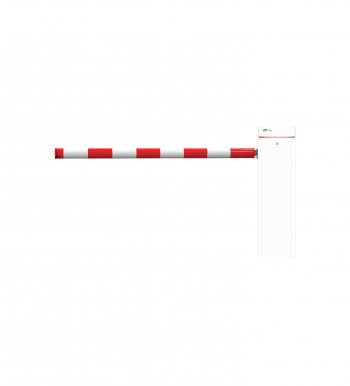

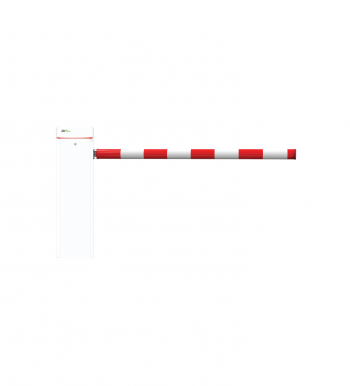

The ProBG8000 Series is a servo-driven parking barrier engineered for superior performance and longevity. Powered by a highly efficient and reliable servo planetary gear reduction motor, it delivers an impressive MCBF (Mean Cycles Between Failures) of up to 10 million operations, ensuring an exceptionally long service life. It features a built-in RGB interactive lighting system that supports a variety of colours and effects to clearly indicate operational status. The mainboard employs high-precision servo control, ensuring stable and reliable operation.
Designed for high-intensity traffic environments, the ProBG8000 Series is suitable for super shopping malls, commercial districts, tourist attractions, government agencies, residential apartments, factories, schools, hospitals and other solution.
| Model | ProBG8030L/R ProBG8045L/R |
| Visual Indicator | LED stripe (7 Colour RGB, Customizable) Breathing Red: Close Flowing Green: Normal Use Flashing Blue: Stand by |
| Display | N/A |
| Boom Type | Round straight boom |
| Boom Length | ProBG8030L/R: ≤3m Round straight boom ProBG8045L/R: ≤4.5m Round straight boom |
| Boom Angle Adjustment | N/A |
| Motor Type | 24V DC brushless servo motor |
| Motor Power | 400W (peak / short-term) |
| Rated Power | 260W |
| Operating Speed | 0.3s~6s (opening/closing ; adjustable) |
| Chassis Material | 2.0mm cold-rolled steel plate Double-layer powder coated |
| Chassis Color | White |
| Barrier Boom Material | 1.0mm aluminum alloy |
| Motherboard Function | Switch control, loop/infrared/radar detector control, anti-smash control, traffic light control, Ethernet module (optional), Bluetooth module (optional) |
| Power Supply | Input: AC110V/220V±10% 50/60Hz Output: DC24V 20A |
| Rated Input Current | <15A |
| Fire Signal | Dry-contact relay input (fire alarm linkage) |
| Motor MCBF | 10 million |
| Weight | Net Weight (excluding the barrier arm) : 50kg |
| Chassis Dimension | 370*325*1020mm |
| Operating Temperature | -40℃ ~ 80℃ |
| Operating Humidity | <90% RH (non-condensing) |
| Certifications | CE, FCC (pending) |
| Ingress Protection Rating | IP54 |
| Anti-collision | Digital anti-collision, infrared anti-collision, radar anti-collision, anti-collision loop detector, auto-rebound, pole-off functions when in emergency |
| Product Delivery | ≤15 days |
| Application Environment | Indoor/Outdoor/Semi-outdoor |
| Site Preparation | Flat & Level Finished Floor |
| Duty Cycle | 100% |
| Remote Control Distance | ≤50m |
| Rated Speed | 850rpm |
| Rated Current | <20A |
| Operating Voltage | DC 24V |
| Warranty | 2 years |
