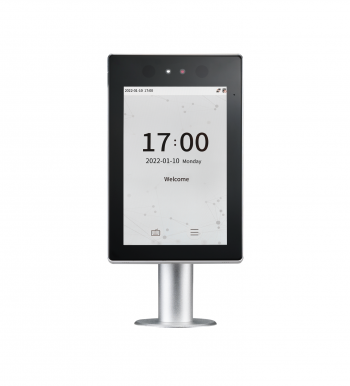

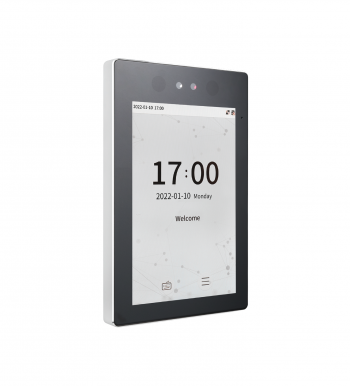

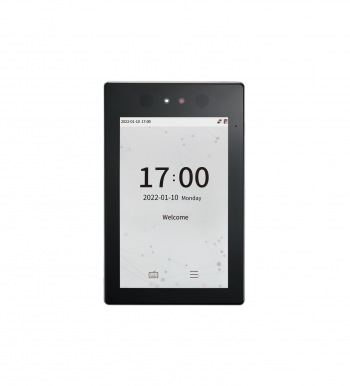

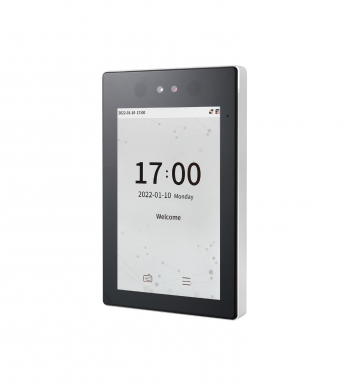

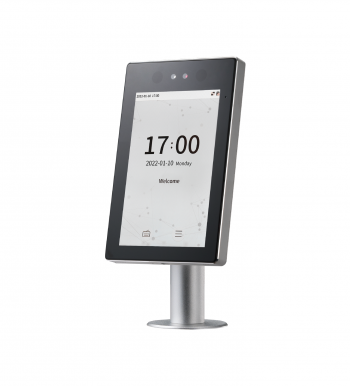

ProFace X(DS) is a top-notch model of the ProFace X series, along with the series legacy, which is robustly built and reaches IP68 water and dust protection level and IK04 vandal resistance standard. “DS” is named because, this is the first product equipped with a state-of-the-art ZKTeco Dual Spectrum Facial Recognition Algorithm, which intelligently combines near-infrared and visible light facial recognition technology together to make up a deficiency by the surplus and reached a new height of facial recognition performance in all aspects, especially supporting all human races. It’s also greatly enhanced its facial recognition performance to tackle all extreme lighting conditions. From dark light (as low as 0 lux) to extremely strong light (100,000 lux) the facial recognition performance is still as good as under normal sunlight in terms of recognition speed, accuracy, distance and pose angle tolerance.
| Face Capacity | 30,000 (1:N) / 50,000 (Optional) |
| Users / Card Capacity | 50,000 |
| QR Code Capacity | 50,000 (Static / Dynamic) |
| Transaction Capacity | 1,000,000 / 2,000,000 (Optional) |
| User Photo Capacity | 10,000 |
| Event Photo Capacity | 7,500 |
| Compatibility | Security Relay Box / Wiegand (IC / ID) / RS485 Slave Reader with FP / RFID / RS232 External Printer / ZKBio CVSecurity Software / ZSmart App |
| Standard Function | Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback, Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm |
| Hardware | 1.2GHz Quad-core Customized Computer Vision CPU 1GB RAM / 8G Flash 8" High light Touch LCD 125KHz EM / 13.56MHz MF (Optional) 2MP WDR Low Light Camera Adjustable Light Brightness LED Hi-Fi Voice Receiver Sensitivity Microphone Reset Button and Tamper Switch |
| Special Function | IP68 & IK04 0.3s High Speed Face Verification Live Face Detection Https communication Encrypted (optional) Event Snapshot Works with everyone Dual Spectrum Facial Recognition Compatible with all ZKTeco's Visible Light Facial Recognition facial templates |
| Access Control Interface | Lock Relay Output Alarm Output / Auxiliary Input Exit Button / Door Sensor |
| Communication | TCP/IP Wiegand Input / Output Wi-Fi (Optional) RS485 / RS232 |
| Additional Info | |
| Face Algorithm | ZKFace5.95 |
| Operating Temperature | -20°C to 55°C (-4°F~ 131°F) |
| Operating Humidity | ≤90% |
| Storage Temperature | -25°C to +65°C |
| Storage Humidity | ≤93% |
| Dimension | 227*143*26mm (H*L*D) |
| Power | |
| Operating Voltage | 12V DC |
| Current Draw | < 3,000mA |
