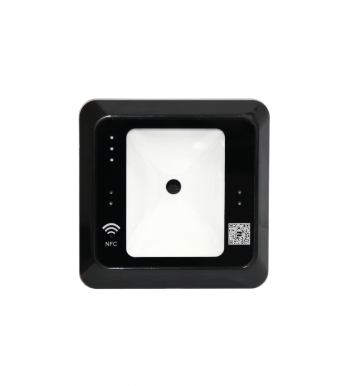

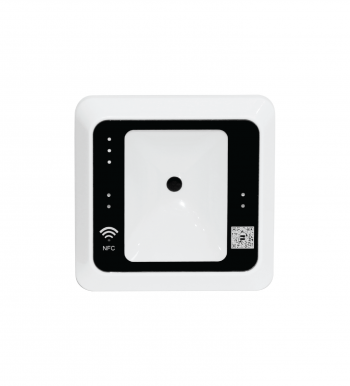

The QR code Reader is a new generation of intelligent access control card readers. It has fast scanning speed, high recognition rate, High compatibility, and can be connected to any access controller that supports Wiegand input. It also supports the RFID functions, like 13.56MHz Mifare Ultralight / DESFire EV1, NTag, So that it can be applied in community management, visitor management, hotel management, unmanned supermarkets and so on.
| International Standard | ISO / IEC 14443A RS485 Protocol |
| Barcode | QR Code, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128, UPC / EAN, Codabar, Code39/93 etc. |
| RFID | Mifare Uitralight, DESFure EV1,Ntag, S50 / S70 |
| Operating Frequency | 13.56MHz |
| Power Supply | DC 12V (±5%), USB 5V |
| Operating Distance | QR ≥ 5CM, RFID Card ≥ 4CM |
| Communication | Wiegand, RS485, USB |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 80°C |
| Operating Humidity | 20% - 80% |
| Dimension | 86 * 86 * 50mm |
| USB Cable | 1000mm |
