Series Flap Barrier

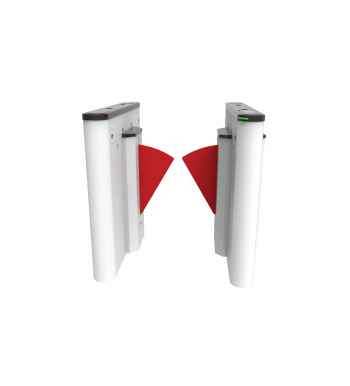

ZKTeco's Saturn-F1000 series flap barrier is a high-efficiency and designed for efficient access control for both indoor and outdoor scenarios.
Constructed with a robust cold-rolled SPCC steel chassis and a retractable polycarbonate (PC) fap barrier, the Saturn-F1000 ensures durability and safety while maintaining a modemn appearance. Equipped with a DC brushless motor, the Saturn-f1000 delivers rapid operation, opening or closing in less than one second per movement. The system integrates advanced features such as anti-pinch and anti-tailgating detection, as well as multiple authentication options-including RFlD, OR code, and facial recognition-catering to diverse security requirements. Also, the Saturn-F1000 supports a flow rate of up to 30 passengers per minute (RFlD / OR code) and 15 passengers per minute (facial recoanition), making it ideal for high-traffic applications.
| Model Name | Saturn-F1000 Saturn-F1200 |
| Audio Indicator | Speaker |
| Visual Indicator | LED Indicators Steady blue = Standby, Steady green = Normal use Steady red = Barrier close |
| Display | N/A |

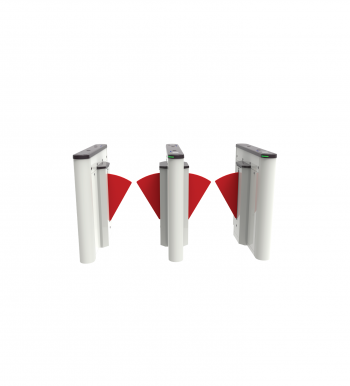

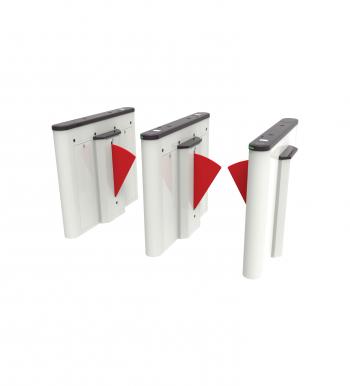

| Lane Type | Saturn-F1000: Single Lane Saturn-F1200: Dual flap barriers for additional lane (with Saturn-F1000) |
| Lane Width | 1020 mm |

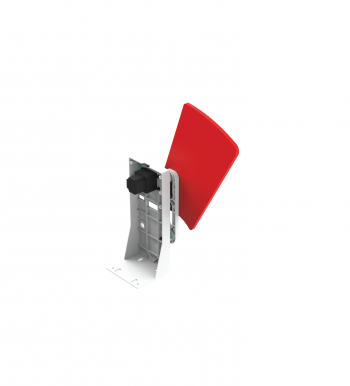

| Barrier Movement Type | Retractable flap barrier (Polycarbonate) |

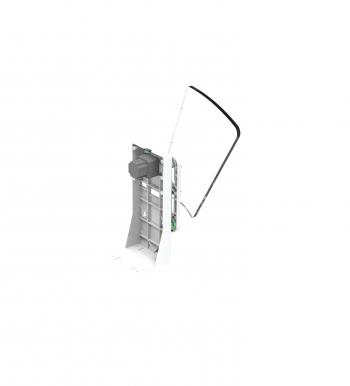

| Motor | DC brushless motor |
| Movement Speed | Less than 1s per movement (open / close timing) |
| Movement Accuracy | N/A |
| Clutch | N/A |
| Cabinet Lid Material | Cold-rolled SPCC Steel (GB700) |
| Lid Material | Polycarbonate+2.5D tempered glass |
| IR Sensors | 5 pairs |
| Motherboard Function | System configuration, access mode con guration, anti-pinch configuration, anti-tailgate configuration etc. |
| Motherboard Communication | Fire alarm Port(Relay)*1, RS485 Port*1 |

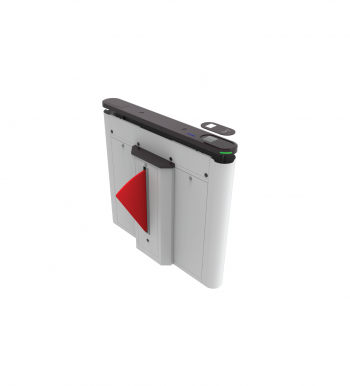

| Lid Options Authentication Methods | Streamlined under mount options: RFID / QR Code Top mount options with mounting pole: Facial Recognition (compatible with ProFace X / SpeedFace V5L / Elite Pass) |
| Chassis Material | Cold-rolled SPCC Steel (GB700) |
| Chassis Colour | C3, InBio series or or third-party devices |
| Credential Options | Under mount RFID reader: (support model: ProID Series) Under mount QR Code Reader: QR500 Top mount facial recogntion terminal: ProFaceX/ Elite Pass/ SpeedFace V5L |
| Flow Rate | RFID: 30 passengers per minute QR Code: 30 passengers per minute Facial Recognition: 15 passengers per minute |
| Accessibility | Standard lane (550mm): Adult and children |
| Power Supply | 110V / 220VAC @ 50-60 Hz |
| Power Rating | 10VA (Standby), 40VA (Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60minutes |
| MCBF | Saturn-F1000: Gross weight (60kg); Net weight (50kg) Saturn-F1200: Gross weight (35kg); Net weight (30kg) |
| Dimensions ( L*W*H ) | 1200 * 306 * 1020mm |
| Dimensions with Packing ( L*W*H ) | 1345 * 360 * 1100mm |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 20% to 85% RH (non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection Rating | IPX4 |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller) |
| Safety Features | IR sensor safety detection Logic voltage 24V DC Voltage free contact input for fire alarm fail state Auto opening on power off |
| Security Features | Anti-intrusion, anti-tailgating, wrong way enter alarm, automatically close door when no one pass |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor/ Outdoor |
| Site Preparation | Flat & level finished floor (base plate in options for unfinished floor) |
| Security Level | Middle |
| Emergency Mode | Support (door unlock automatically) |
| Packing Material | Carton box |
