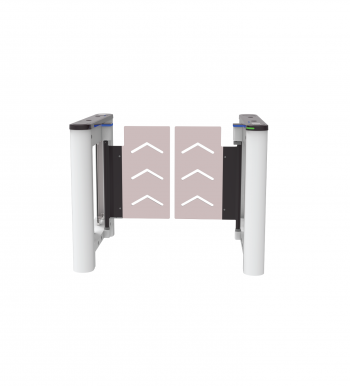

The Saturn-S1000 Pro Series intelligent swing barrier by ZKTeco is engineered for efficient and secure pedestrian access management. Integrating mechanical structure, electronics, microprocessor control, and multiple authentication technologies into one unified system, it seamlessly coordinates authentication, directional indication, and real-time alarm systems - all driven by a high-performance DC brushless motor.
The overall design is elegant, durable, rust-resistant, and built for long-term operation. Standard electrical interfaces allow easy integration with multiple verification methods, including facial authentication, RFID, and QR code verification, providing users with a secure, orderly, and efficient passage experience while effectively preventing unauthorized access. In a fire emergency or upon power failure, the barrier automatically releases and holds the lane unobstructed, supporting fast and safe evacuation.
| Model Name | Saturn-S1000 Pro Saturn-S1200 Pro |
| Audio Indicator | Internal speaker |
| Visual Indicator | Top LED indicator: Blue = Door closed / stand by Green = Door opening Red = Door closing / alarm Swing Barrier LED Indicator Green = Lane available Red = Lane unavailable |
| Display | N/A |

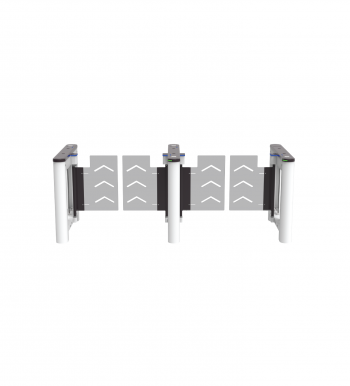

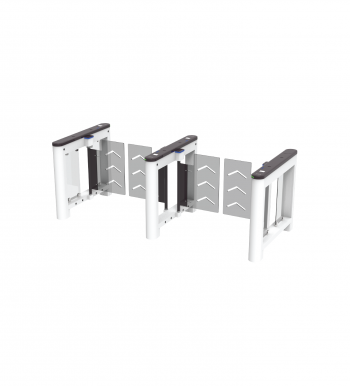

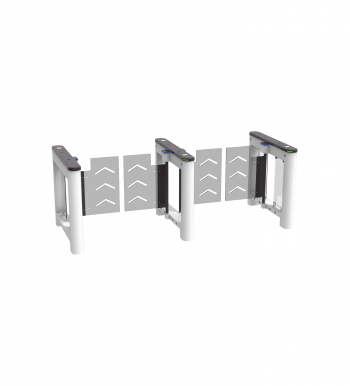

| Lane Type | Saturn-S1000 Pro: Single Lane Saturn-S1200 Pro: Dual wings (with Saturn-S1200 Pro) |
| Lane Width | 600~750mm(Standard; acrylic barrier; adjustable ) 1000mm (Optional; acrylic barrier ) 1200mm (Optional; SUS304 barrier) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
| Movement Accuracy | N/A |
| Clutch | N/A |
| Lid Material | Polycarbonate+2.5D tempered glass |
| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFID Surface mount option: Facial Authentication |
| Chassis Material | Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid) |
| Chassis Colour | Pearl White(PWH), Space Gray(SGY), Carbon Black(CBK), Bay Blue(BBLE), Mist Brown(MBW) |
| Barrier Material | Clear acrylic (H*W, 635*300mm)(standard) / Tempered glass (H*W, 635*425mm)(optional) (For extended lane width of 1200mm requires SUS304 barrier) |
| IR Sensors | 6 pairs (standard) ; 8 pairs (optional) |
| Motherboard Function | System configuration, access control |
| Motherboard Communication | Fire alarm Port(Relay)*1, RS485 Port*1 |
| Controller | Not equipped. Compatible with C3 series controller/ InBio series controller (optional) |
| Credential Options | Under mount RFID reader: Pro ID Series, KR Series Under mount QR code reader: QR500 Surface mount facial authentication reader: ProFace X / SpeedFace V5L |
| Flow Rate | Facial Authentication: 15 passengers per minute QR Code: 30 passengers per minute RFID: 35 passengers per minute |
| Accessibility | Adult, Children (with care), Disability (with care) |
| Power Supply | 110V / 220V AC @ 50 ~ 60Hz |
| Power Rating | 10VA(Standby) 40VA(Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 50 dB |
| MTTR | Less than 60minutes |
| MCBF | 5 million |
| Net Weight | Saturn-S1000 Pro: 50kg Saturn-S1200 Pro: 30kg |
| Dimension (L*W*H) | 1200*150*1020mm |
| Dimensions with Packing ( L*W*H ) | Saturn-S1000 Pro: Carton (standard):1346x720x1082mm (2 boxes); Wooden box (optional):1300x630x1222mm (2 boxes) Saturn-S1200 Pro: Carton (standard): 1346x360x1082mm (1 box); Wooden box (optional):1300x315x1222mm (1 box) |
| Operating Temperature | -30 °C to 70 °C |
| Operating Humidity | 5% to 90% RH (Non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection Rating | IPX4 |
| Supported Software |
ZKBio CVAccess / ZKBio CVSecurity (depends on equipped access controller) |
| Safety Features | Power off unlock device/ Fire alarm active door release |
| Security Features | Anti-tailgating, anti-pinch |
| Product Delivery | Pre-assembled for easy installation |
| Application Environment | Indoor / outdoor (if sheltered) |
| Site Preparation | Flat and level finished floor (optional base plate for unfinished floors) |
| Security Level | Middle |
| Emergency Mode | Swing barrier unlocks automatically |
| Packing Material | Carton (standard) / wooden box (optional) |
| Warranty | 1 year |
