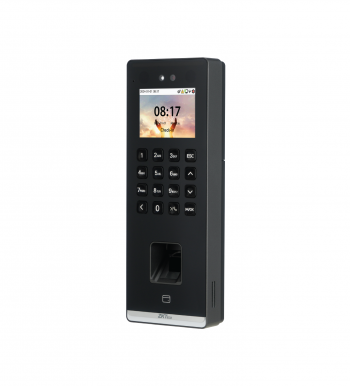

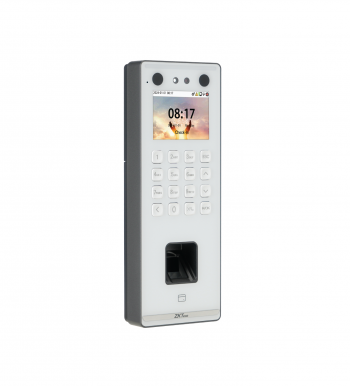

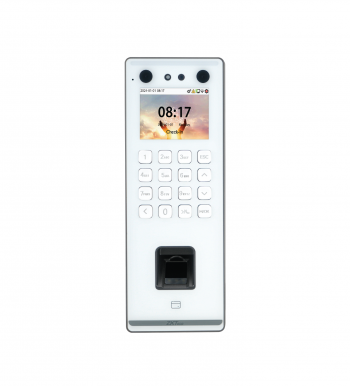

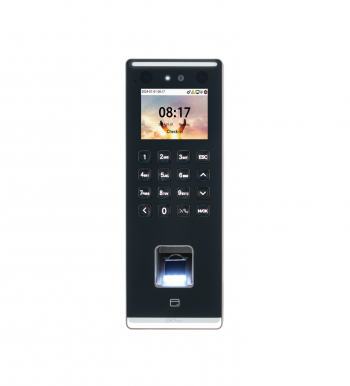

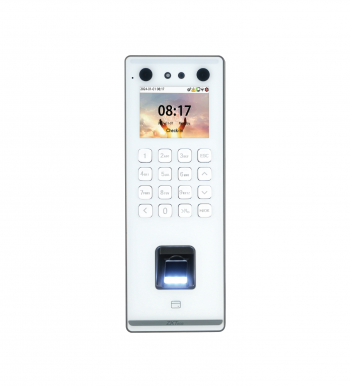

SenseFace M2F-UD adopts the latest intelligent engineering facial authentication. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication. SenseFace M2F-UD is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (version 2.0). Besides, SenseFace M2F-UD supports multiple communication protocols. It support BEST protocol to link with ZKBio Zlink (AC module). Also, it can convert to AC push or TA push to be compatible with various AC or TA softwares.
| Model | SenseFace M2F-UD |
| Display | 2.4"@ TFT Color LCD Screen (320*240) |
| Camera | WDR Binocular Camera @ 1MP |
| Operation System | Linux |
| Hardware | CPU: Dual Core@1GHz & Computing Power: 0.5 Tops RAM: 512MB; ROM: 8GB Speaker: 8ohm @1W Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32 dB/Impedance: 2.2kΩ) Supplement Light: Yes Physical Keypad: 17 Keys Fingerprint Sensor: ZK Optical Sensor |
| Authentication method | Fingerprint / Face / Card / Password (Physical Keypad) |
| Fingerprint Template Capacity | 3,000 (1:N) (Standard) |
| Face Template Capacity | 1,500 (1:N) (Standard) |
| Card Capacity | 3,000 (1:N) (Standard) |
| User Capacity | 3,000 (1:N) (Standard) |
| Transaction Capacity | 150,000 (1:N) |
| Max. User Password Length | 8 Digits |
| Biometric Authentication Speed | less than 0.5 sec (Fingerprint) less than 0.35 sec (Facial Authentication) |
| Touchless Biometric Authentication Distance | 30cm to 200cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Visible Light Facial Authentication) FAR ≤ 0.0001% ( Fingerprint ) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% (Visible Light Facial Authentication) FRR ≤ 0.01% (Fingerprint) |
| Biometric Algorithm | ZKFace V4.0 ZKFingerprint V13.0 (Standard) /V10.0 (Optional) |
| Card Type | ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional) |
| Communication | TCP/IP*1 Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) USB: Type A (USB Drive Only )*1 Electric Lock*1, Door Sensor*1, Exit Button*1 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
| Optional Functions | IC Card, Wi-Fi |
| Power Supply | DC 12V 1.5A |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Dimensions | 205.20 mm*74.19 mm*33.30 mm (L*W*H) |
| Net Weight | 0.258 Kg |
| Supported Software | Mobile App.: ZKBio Zlink Cloud-based Software: ZKBio Zlink On-Premise Software: ZKBio CVAccess / ZKBio Time |
| Installation | Wall-mount (Compatible with Asian Gang Box / Single Gang Box) |
| Certifications | ISO14001, ISO9001,CE, FCC, RoHS |
