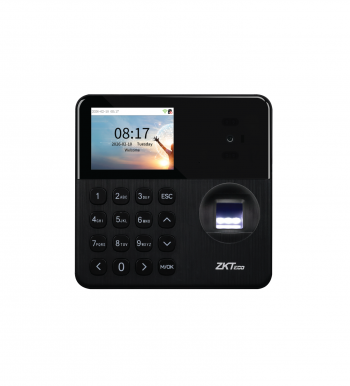

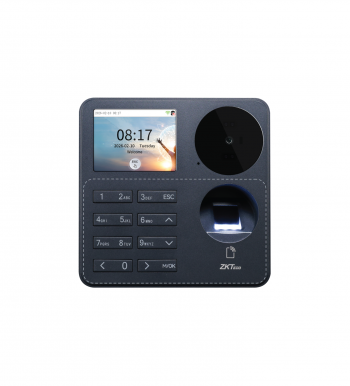

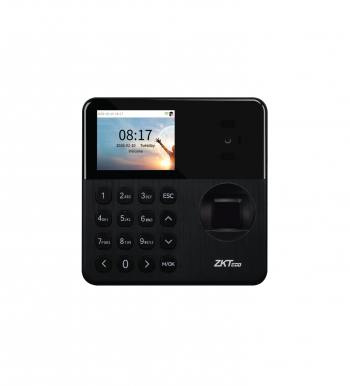

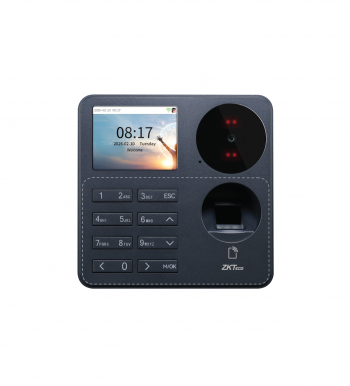

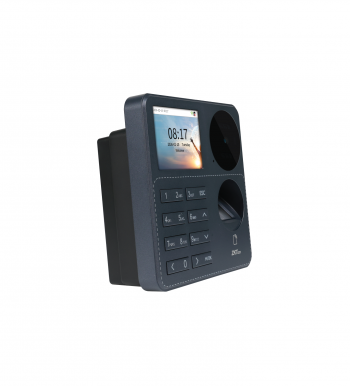

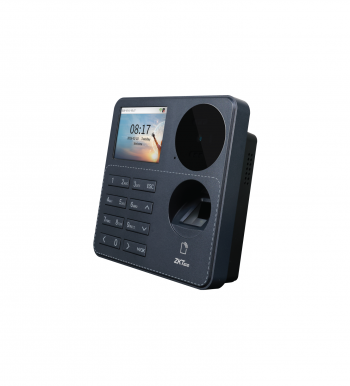

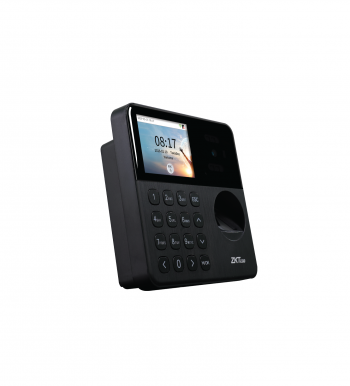

SensePalm T1 & T2 is a time and attendance terminal which simplifies attendance solutions. It is aimed at small and medium-sized businesses (SMEs) that want to manage their workforce reliably and affordably.
SensePalm T1 & T2 offers flexible authentication options, such as palmvein authentication, fingerprint authentication, RFID authentication (optional) and password entry to suit different workplace preferences. SensePalm T1 & T2 supports Wi-Fi and compatible with ZKBio Zlink. This lets users manage employees and equipment, set attendance rules and check real-time attendance reports on their desktop or mobile device. Also, it has a 2,000mAh backup battery (optional) which provides a maximum of 2 hours of continuous operational power.
| Model | SensePalm T1 SensePalm T2 |
| Display | 2.4" TFT Color LCD Screen (320*240) |
| Camera | Monocular Palm Authtication Camera @ 1MP |
| Operation System | Linux |
| Hardware | SensePalm T1: CPU: Dual-Core @ 1GHz; RAM: 512MB; ROM: 512MB; Speaker: 8ohm @1W; Supplement Light: Near-Infrared Light*4; Physical Keypad: 16 Keys; Color: Black; Fingerprint Sensor: ZK Optical Sensor SensePalm T2: CPU: Dual-Core @ 1GHz; RAM: 512MB; ROM: 512MB; Speaker: 8ohm @1W; Supplement Light: Near-Infrared Light*4; Physical Keypad: 16 Keys; Color: Black; Fingerprint Sensor: ZK Optical Sensor |
| Authentication method | Palm / Fingerprint / Card (Optional) / Password (Physical Keypad) |
| Fingerprint Template Capacity | 1,500 (1:N) (Standard) |
| Card Capacity | 3,000 (1:N) (Standard) |
| User Capacity | 3,000 (1:N) (Standard) |
| Transaction Capacity | 150,000 |
| Max. User Password Length | 8 digits |
| Biometric Authentication Speed | Less than 0.5 sec (Fingerprint), less than 0.35 sec (Palm Authentication) |
| Touchless Biometric Recognition Distance | 8cm to 15cm (Palm) |
| False Acceptance Rate (FAR) % | FAR=0.001% (Palm), FAR ≤ 0.0001% (Fingerprint) |
| False Rejection Rate (FRR) % | FRR=0.17% (Palm), FRR≤0.01% (Fingerprint) |
| Biometric Algorithm | ZKPalmVein V21.3, ZKFingerprint V13.0 (Standard) / V10.0 (Optional) |
| Card Type | ID Card: 125 kHz (Optional), IC Card: 13.56 MHz (Optional) |

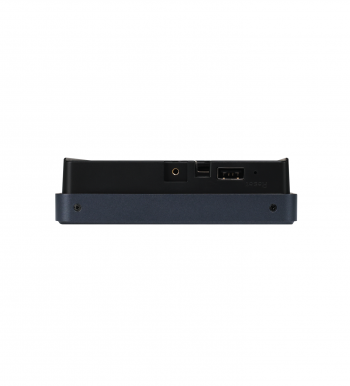

| Communication | Wi-Fi (IEEE 802.11b/g/n/ax) @ 2.4GHz; Wi-Fi 6 Enabled USB: Type A 2.0 *1 (USB Drive Only) |
| Standard Functions | ADMS, DST, Workcode, Up to 14-digit User ID, Record Query, Schedule Bell, Automatic Status Switch / Self-Service Report (Effective only under T&A rules), Multiple Authentication Methods, HTTPS for cloud/Web access; SSH for backend maintenance; T9 Keyboard (Input), Online Firmware Upgrade |
| Optional Functions | ID Card, IC Card, Backup Battery |
| Power Supply | DC 5V 2A |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Backup Battery (Optional) | 2,000mAh (Lithium Battery) Operating Hours: 2 Hours Max.Standby Hours: 3.5 Hours Estimated Charging Time: 5 Hours |
| Dimensions | 117.5 mm*116.6 mm*31.0 mm (L*W*H) |
| Gross Weight | 0.45 Kg |
| Net Weight | 0.24 Kg |
| Supported Software | Cloud-based Software: ZKBio Zlink by default (Supports Web Portal & Mobile App) On-Premise Software: ZKBio Time (TA PUSH) |

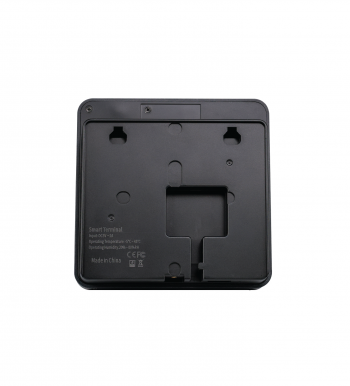

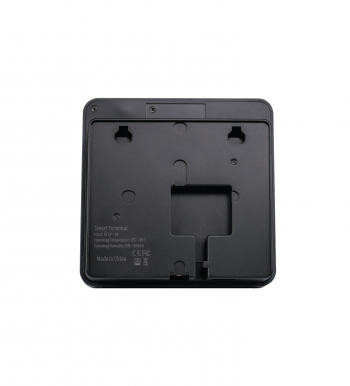

| Installation | Wall mount (Compatible with Asian Gang-Box/ Single Gang-Box) Desk mount (Compatible with Rots-4 desktop stand) |
| Certifications | ISO 9001, ISO14001, CE, FCC, Equivalent to RoHS |
| Order ID | SensePalm T1: TA01-PV01H-21 SensePalm T2: TA01-PV010H-21 |
