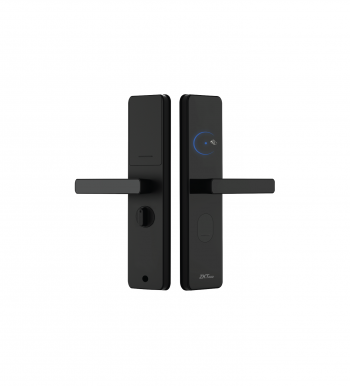

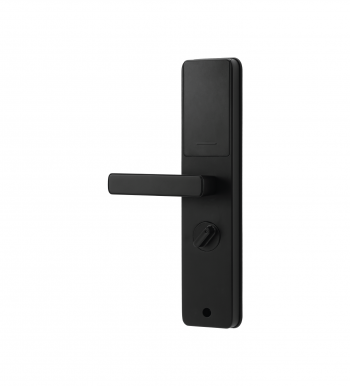

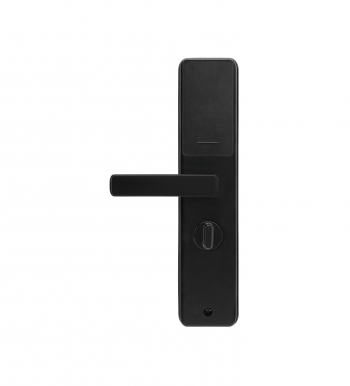

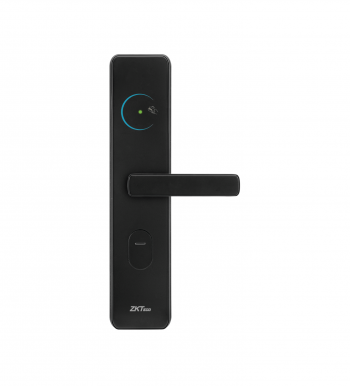

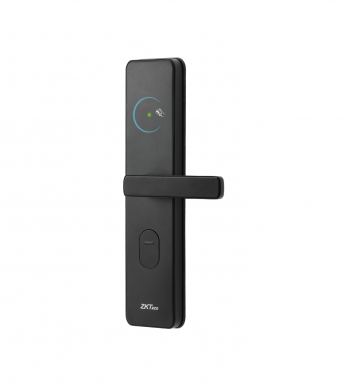

SL02-ZL140H offers the convenience of a wireless hotel lock, it supports connecting to the hotel lock management system-ZKBio CVSecurity SmartLock, the lock supports remote control, status monitor and unlock record synchronization. Users can achieve access control and elevator control system by Multi-Tech cards. It is an ideal solution for smart hotels and resorts.
| Model | SL02-ZL140H |
| Material | |
| Housing Material | Aluminum Alloy |
| Front Panel | ABS |
| Color | Black |
| Mortise Lock | |
| Type | American Standard |
| Backset | 62mm (2-7/16") |
| Axe Distance | Lever to Cylinder: 95mm (3-3/4"), Lever to Thumbturn: 62mm (2-7/16") |
| Square Spindle | 8x8mm square |
| Faceplate (H×W) | 26×204 mm (1-1/41" x 8-1/32"), squared standard |
| Built-in Detectors | Latch Bolt, Deadbolt, Cylinder |
| Technical | |
| Unlocking Methods | Card, Web Application, Mechanical Key Backup |
| Capacity | Event Log: 500 entries (Auto-overwrite) |
| Card Reader | S50/S70 IC Card @13.56 MHz |
| NFC Supported | Yes ( ISO/IEC 14443 A) |
| Encoder | D147-H |
| Audio Prompt Language | English |
| Wireless Communication | Zigbee 3.0 (IEEE 802.15.4) |
| Power Supply | 4 × LR6 AA (Alkaline recommended only) |
| Battery Life | Approximately 1 year and 7 months (* Based on lab testing: 10 daily cycles with deadbolt actuation and Zigbee connected.) |
| Supported Software | ZKBio CVSecurity SmartLock |
| Door Compatibility | |
| Door Type | Swing Mortise Door |
| Door Thickness | 40 to 63 mm (Standard) |
| Door Swing | Right Inward (Standard). (For non-standard door swing, please specify at purchase for proper fit.) |
| General | |
| Net Weight | 2.3 kg |
| Gross Weight | 2.7 kg |
| Product Dimensions (H×W×T) | Exterior: 330 × 71 × 22 mm Interior: 330 × 71 × 22 mm * Excluding lever height: 41 mm |
| Package Dimensions (L×W×H) | 460 × 240 × 95 mm |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Certifications | CE, FCC |
| Package Contents | Front/Rear Trim; Washer; Lock Body Kit (Includes mortise, strike plate, locking box); Lock cylinder Kit (Includes 2 mechanical keys); Studs & Screws Kit; IC Card * 2; Installation Template; Installation Guide |
