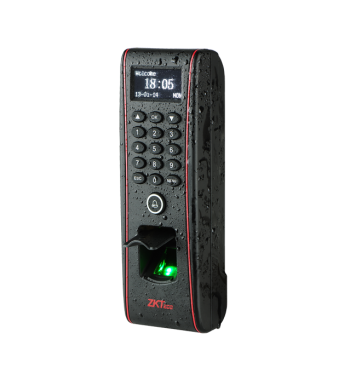

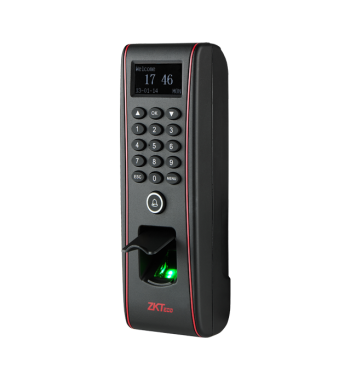

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing. With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others. The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKBioAccess management software which has versatile features and powerful functions.
| Fingerprint Sensor Type (optional) | Infrared detection fingerprint sensor |
| Algorithm Version | ZK Finger V10.0 |
| Communication | TCP / IP, RS485*, USB Host |
| Fingerprint Capacity (optional) | 3,000 Fingerprints (8,000 Optional) |
| Card Capacity | 10,000 Cards |
| Log Capacity | 50,000 Transactions |
| Logs Capacity | 50,000 Transactions |
| RF Card | EM (standard) / IC Card (optional) |
| Authentication Method | Finger / PIN / Card |
| Wiegand Signal | Wiegand input & output |
| Ingress Protection Rating | IP65 |
| Display | 128 x 64 OLED |
| Keypad | 3 x 5 keypads & doorbell |
| Sound and Interface | Buzzer and multi-color LED |
| Operating Voltage | 12V DC 3A |
| Operating Temperature | -10 °C to 50 °C (14°F ~ 122°F) |
| Dimension | 62.5 mm × 185 mm × 41.5 mm (W×H×D) |
