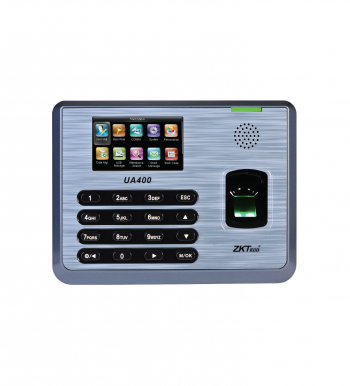

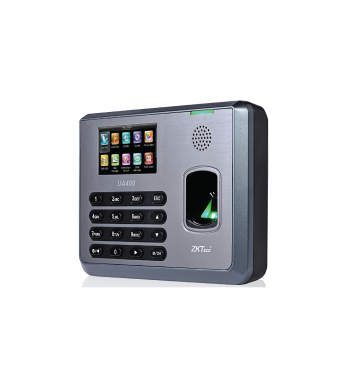

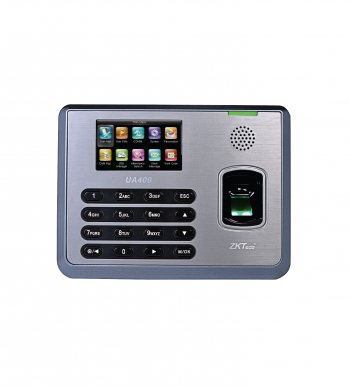

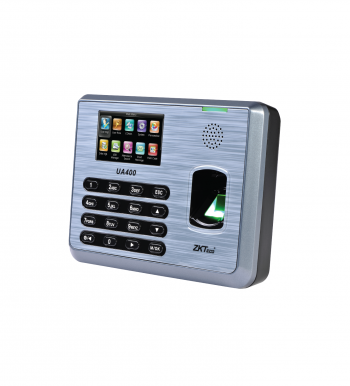

UA400

UA400 adopts the brand new firmware and provides an unprecedented user experience. It brings innumerable surprises, including the stunning GUI, rock-solid stability, fast matching speed and expandability. Users can easily manage data by networking UA400 via RS232/485, TCP/IP, USB Host or USB Client. Most importantly, all the functions can still operate in a networking state. UA400 is compatibility with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion. It promotes the fingerprint time & attendance management to the next level. You can get the best of benefits from the UA400.

Features

Remarkable user experience

  • Intuitive and stunning UI designed with the most popular and internationalized factor.
  • Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
  • Faster matching speed: less than 0.5 second.

Excellent expandability

  • Easy to extend functions and customize customers’ demand.

Enhanced features and performance

  • Support user validity settings.
  • Support data backup and retrieve.
  • Support advanced Workcode consisted of letters and numbers.
  • Support chip encryption for frmware protection.
  • Support more flexible menu confguration:
    double line text display.
  • Support external printer for attendance records output (Optional).
Fingerprint Capacity 3000 (1:N)
Card Capacity 10,000 (Optional)
Record Capacity 100,000
Display 2.8-inch Screen
Communication TCP/IP, USB-host / Client(Optional)
Standard Functions Webserver, SMS, Automatic Status Switch, Self-Service Query,
Workcode, T9 Input,9-digitUser ID, DST, Schedule Bell
Optional Functions ID / IC Card, External Printer and Bell, Multiple Verify Modes, ADMS
Software ZKBio Time.Net, ZKBio Time
Power Supply DC 5V 0.8A
Verification Speed ≤0.5 sec
Operating Temp 0 °C- 45 °C
Operating Humidity 20%-80%
Dimension 180 × 135 × 37 mm (Length × Width × Thickness)
Net Weight 0.70 kg

UA400

0.48 Mb Data Sheet
2019-04-25
Download
