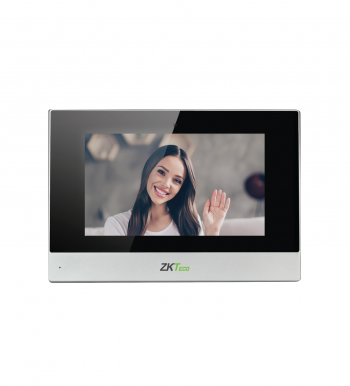

VT07-B22L is a Linux-based video intercom which is an ideal solution to apartment buildings. VT07-B22L provides various functions, including audio and video intercom, emergency call, security alarm, control main door release and integrates with elevator control system. This smart video indoor monitor also supports communication via SIP 2.0 protocol with IP phone and IP-PBX solution.
Physical |
|
| System | Linux |
| RAM | 64 MB |
| ROM | 128 MB |
|
Front Panel |
Plastic |
| Power Supply | PoE (IEEE802.3af ) or DC 12V / 2A |
| Standby Power | 1.5 W |
| Rated Power | 9 W |
| TF Card Port | No |
| USB Port | No |
| Ethernet Ports | 1 x RJ45, 10 / 100 Mbps self-adaptive |
| RS485 | 1 |
| Doorbell Input | Max. 8 input |
| Alarm Input | Support 8 sensor zones: smoke, gas, PIR, door, window, panic and flood |
| Installation Method | Wall mount (on flat surface) |
| Application Environment | Indoor |
| Dimensions (H*W*D) | 221.4 * 151.4 *16.5 (mm) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -10°C to +60°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Display |
|
| Display | 7-inch TFT LCD |
| Screen | Capacitive touch screen |
| Resolution | 800 x 480 |
Audio |
|
| Audio Codec | G.711 |
| Echo Cancellation | Yes |
| Rated Power | 10 W |
| DTMF | RFC2833 |
| Microphone | Built-in microphone |
| Speaker | Built-in speaker |
Video |
|
| Video Codec | H.264 |
Networking |
|
| Protocol | SIP 2.0, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP |
Package features |
|
| Package Content | VT07-B22L (Power adapter not included) - Bracket - Screwing kit - User Manual |
