X7

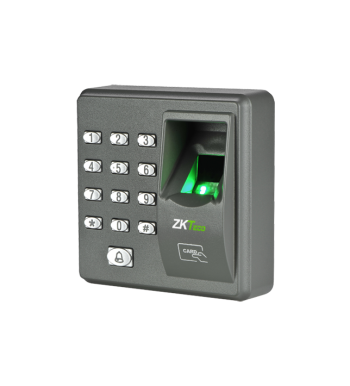

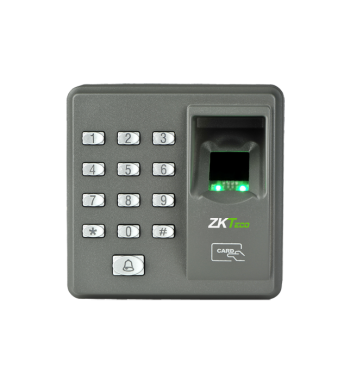

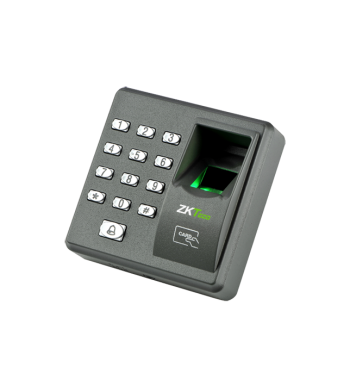

ZKTeco’s X7 is an economical and convenient standalone access control terminal which provides various authentication, including fingerprint verification, RFID cards (125kHz/13.56MHz) and password. Equipped with a lock interface, door sensor, exit button, alarm, and doorbell, the X7 offers a comprehensive range of features to enhance security and convenience. What's more, the X7 requires no supporting software and can independently manage user access and parameters, such as adding and deleting users and configuring access control settings. Experience the reliability of the X7 for your access control needs and protecting your property security.

Card Capacity 500
Fingerprint Capacity 500
Password Group 8
Password digit 4
Fingerprint Algorithm ZK Finger v10.0
Supported RFID Card Type 125kHz; 13.56MHz
Access Control Interface 3rd party electric lock, alarm, door sensor, exit button and doorbell
Power 12V 3A
Operating Temperature 0°C to 40°C
Store Temperature -10°C to 50°C
Dimension(L*W*H) 88 * 88 * 33.6 mm
Net Weight 0.14 kg

X7_Datasheet_202312

0.71 Mb Data Sheet
2024-08-06

X7 Access Control System User Manual V1.2

0.89 Mb User Manual
2015-07-27
