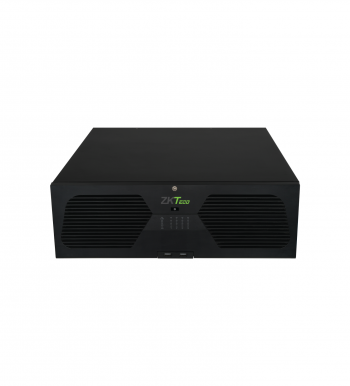

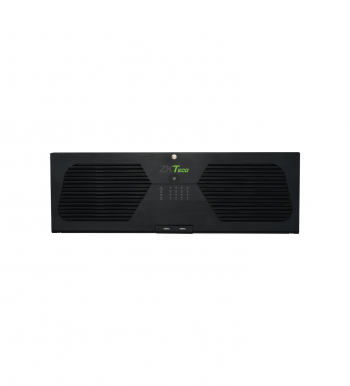

ZKTeco BioSense smart network video recorder (NVR) enhances the efficiency and safety of video surveillance system. ZKTeco BioSense smart NVR features a powerful CPU hardware and ZKTeco's intuitive graphical operating system, these recorders provide 24/7 continuous recording of all video channels and intelligent alarm events. The system automatically classifies and stores footage by human and vehicle detection on the hard drive. Moreover, an advanced retrieval functions enable rapid playback of specific targets (human/ vehicle), allowing users to quickly locate critical footage and alarm events.
ZKTeco BioSense smart NVR enhances surveillance system efficiency and safety across diverse applications including educational facilities, corporate offices, industrial parks, residential communities, and public security operations.
| Model | Z86128NTR-S |
| System | |
| Main Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Operation Interface | Web browser & Local GUI |
| Video and Audio | |
| Max IPC Video Input | 128CH |
| Two-way Talk | Support |
| Audio Compression | G.711u |
| Max Audio Input | 128CH by IPC |
| Third Party Camera Access | ONVIF & RTSP |
| Live View | |
| Display Split | 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 / 49 / 64CH |
| Resolution | 12MP(4000*3000) / 8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768) |
| Live View Capability | Local AI OFF: 2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP, 36CH@D1, 64CH@VGA(25/30fps) Local AI ON: 2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP,36CH@D1 |
| Recording | |
| Video Compression | H.265+ / H.265 / H.264 |
| Recording Resolution | 12MP / 8MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Max. Decoding Capability | Local AI OFF:2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP, 36CH@D1, 64CH@VGA(25/30fps) Local AI ON:2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP, 36CH@D1 |
| Incoming Bandwidth | Local AI OFF: 600Mbps Local AI ON: 562Mbps |
| Outgoing Bandwidth | Local AI OFF:256Mbps Local AI ON:256Mbps |
| Stream Type | Video, Video & Audio |
| Bit Rate | Main Stream: 16Kbps ~ 8192Kbps Sub Stream: 50Kbps ~ 1024Kbps |
| Storage Method | Local hard drive and network |
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Playback and Backup | |
| Playback Channel | 16CH synchronously playback |
| Search Mode | Time / Date, Alarm Types IVA Search |
| Playback Function | Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
| Backup Mode | USB Device / Network Remote |
| Intelligent Video Analytics | |
| IVA by Camera | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost / Left |
| Local IVA Functions | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left |
| IVA by Device(Number of Channels) | 8 |
| IVA by Camera (Number of Channels) | 128 |
| IVA Alarm | |
| Smart IVA Alarm | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left |
| Regular Detection | Motion Detection / Video Shelter / Video Loss |
| Anomaly Alarm | HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict |
| Alarm Linkage Actions | Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center |
| Smart Search | Support smart search out target video by human and vehicle classification filtering |
| Network | |
| Network Protocol | TCP/IP, HTTP, HTTPS, ONVIF, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, WebSocket, ICMP, IGMP, RTMP, RTP, RTCP, ARP |
| Max. Online Users | 30 |
| Web Browser | Google Chrome / Microsoft Edge / Firefox / Safari |
| Operation System | Windows |
| Management Platform | ZKBio CVSecurity / CVAccess / AntarVis 2.0 |
| Mobile Application | AntarView Pro+ (iOS & Android) or AntarView Plus (iOS & Android) [depends on firmware version] |
| P2P Cloud Service | Support |
| Interoperability | ONVIF Profile S/T/G, SDK, CGI, API |

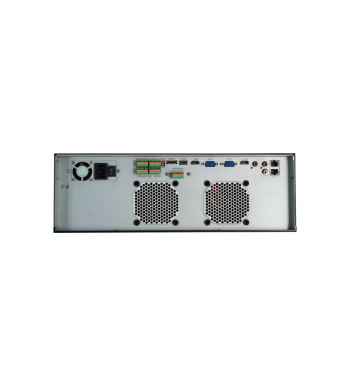

| Storage & Auxiliary Interface | |
| SATA Ports | 16 SATA Port, up to 16 TB capacity each (support Hot Swap) |
| eSATA | Support |
| Raid 0 / 1/ 5 / 6 / 10 | Support |
| HDMI | 2*HDMI (4K) |
| VGA | 2*VGA (1920*1080/60Hz, 1280*1024/60Hz) (support independent output) |
| Network Interface | 2 RJ-45 Port (10/100/1000 Mbps self adaptive) |
| PoE Ports | N/A |
| Standard | N/A |
| USB | 2*USB 2.0,1*USB 3.0 |
| Audio Input/Output | 1 In / 1 Out |
| Alarm Input/Output | 16 In / 8 Out |
| RS-485 | Support |
| RS-232 | N/A |
| Power | |
| Power Supply | AC100~240V, 50Hz~60Hz |
| Power Consumption | ≤45W (without HDD) |
| General | |
| Casing | 3U |
| Working Temperature | -10°C ~ 55°C / 14°F ~ 131°F |
| Working Humidity | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop / Cabinet mount |
| Dimensions(L*W*H) | 484*436*143 (mm) |
| Net Weight | 11KG |
| Gross Weight | 21.7KG |
| Certifications | CE-LVD; CE-EMC; FCC certification |
| Environment | CE-RoHS, WEEE, Reach self-declaration |
