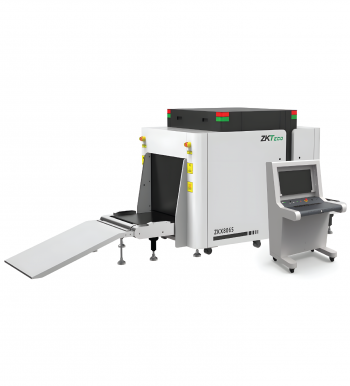

ZKX8065 X-ray Inspection System features a tunnel opening of 800 mm (W) x650 mm (H) and is designed for bags, parcels, and small cargo packages, its equipped with a movable console to enhance work efficiency and operator comfort , allowing it to be placed in factories, shopping malls, transportation hubs, and similar locations. The ZKX8065 X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as image processing algorithm, to provide clear scanning images. This allows operators to visually identify potential threat items.
| General Specifications | |
| Tunnel Size (W x H) | 800mm * 650mm |
| Conveyor Speed | 0.20 m/sec |
| Conveyor Load (Max. Load) | 180kg (Adequate distribution) |
| Conveyor Height | 375mm |
| Detector | Dual-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45(TCP/IP) |
| Dimensions (L * W * H) | 2924mm * 1207mm *1500mm |
| Console Dimensions (L * W * H) | 747mm * 706mm * 1279mm |
| Package Dimensions (L * W * H) | 2200mm *1300mm * 1700mm |
| Console Package Dimensions (L * W * H) | 890mm * 840mm * 1502mm |
| Gross Weight (with Package) | 840kg+140kg (Console) |
| Net Weight | 700kg+100kg (Console) |
| Film Safety | ASA/ISO1600 |
| Certifications | CE-EMC, CE-MD, FCC sDOC |
| X-ray Generator & Image Performance | |
| Anode Voltage | 80-160kV (adjustable) |
| Tube Current | 0.3-1.0mA(adjustable) |
| Wire Resolution | 36AWG |
| Steel Penetration | 34mm |
| Spatial Resolution | HorizontalΦ1.3mm / VerticalΦ1.3mm |
| Penetration Resolution | 32AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray Converter | L-shaped Detector Line |
| Computer | |
| Operating System | Windows 10 |
| Processor | i5-10500H |
| RAM | 8GB |
| Hard Drive | 1TB HDD |
| Max Storage | Up to 100,000 Scanned Images |
| Monitor | 21.5"Color LED Screen (1920 x 1080P) |
| Operating Environment | |
| System Power | 220 VAC +/- 10% 50/60Hz 110 VAC +/- 10% 50/60Hz |
| Power Consumption | < 800W |
| Noise Level | < 58dB(A) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5-95%, Non-condensing |
| Health & Safety | |
| Radiation Leak Dosage | < 0.5μSv/h (10cm From the Surface) Compliant with Radiation Safety Standards (< 5μSv/h ) for Cabinet X-ray Systems |
