The VK07-C52L Kit is the comprehensive 4-wire analog video intercom solution which best suited for villas. This comprehensive video intercom kit includes one indoor monitor, one outdoor station, and Installation accessories. When a visitor arrives and rings the call button, you can see who it is, talk to them, and unlock the door with one press. This system not only enhances the convenience of your daily life but also significantly improves your home’s security. Plus, with the ZSmart App, you can unlock the door or talk to visitors when you’re away from home. Take a step forward to a smarter and safer home with the VK07-C52L Kit.

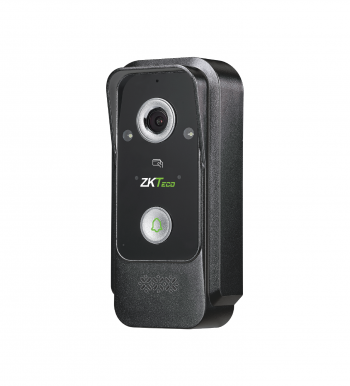

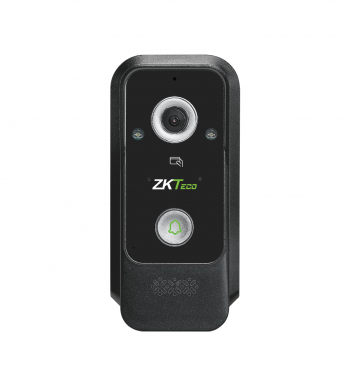

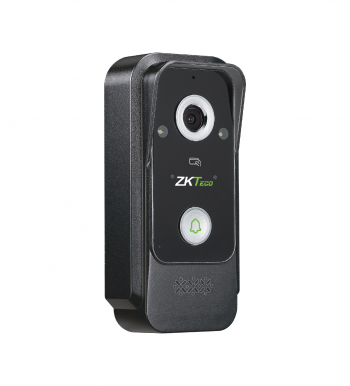

| Outdoor station | |
| Operation System | Linux |
| Video Compression | H.264 |
| Camera | 1080P |
| Camera Viewing Angle | 120° |
| Visible Range (Night) | 0.2 ~ 3 m |
| Power Supply | Power supply by indoor monitor |
| Motion Detection | Support |
| Audio Input | Microphone * 1 (Omni-directional) |
| Audio Output | Built-in Speaker |
| Bi-directional Talk | Support |
| Authentication Method | IC Card / NFC |
| Card Capacity | 1,000 (1:N) (Standard) |
| Ingress Protection Rating | IP65 |
| Operating Temperature | –30 °C to +60 °C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Casing Material | Aluminium Alloy + ABS plastic |
| Installation Method | Flush mount (with rain cover) on flat surface |
| Dimension (W*H*D) | 125 * 52 * 45 (mm) |

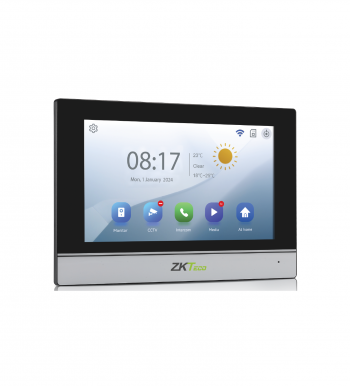

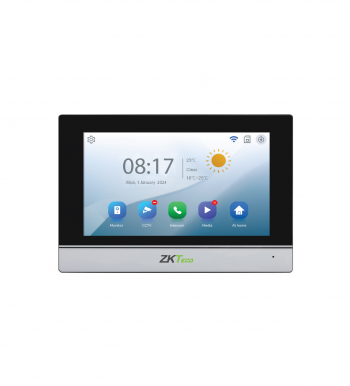

| Indoor monitor | |
| Operation System | Linux |
| Resolution | 1024 * 600 |
| Display Screen | 7 inch touch screen |
| Power supply | DC 15V 1.2A |
| Standby Power | ≤ 3W |
| Operating Power | ≤ 10W |
| Use Distance | ≤ 100M |
| Language | Chinese, English, German, French, Russian, Spanish, Arabic, Portuguese |
| TF card | Max 128GB |
| Support Wi-Fi | IEEE 802.11 a/b/g @ 2.4GHz |
| Material | Tempered glass panel + ABS plastic |
| Supported Mobile App | ZSmart |
| Dimension (W*H*D) | 195 * 132 * 18 (mm) |
| Installation | Wall mount |
